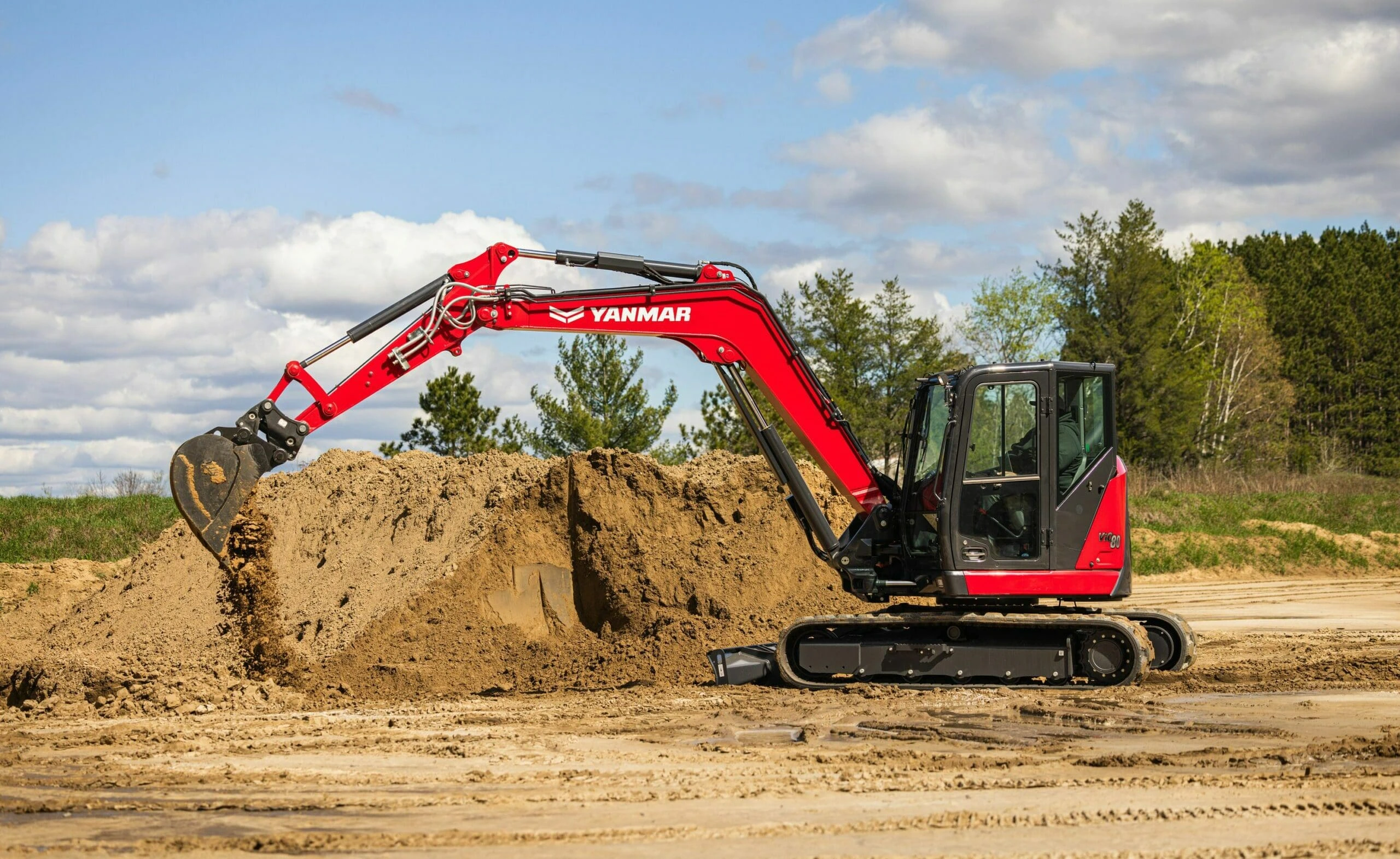

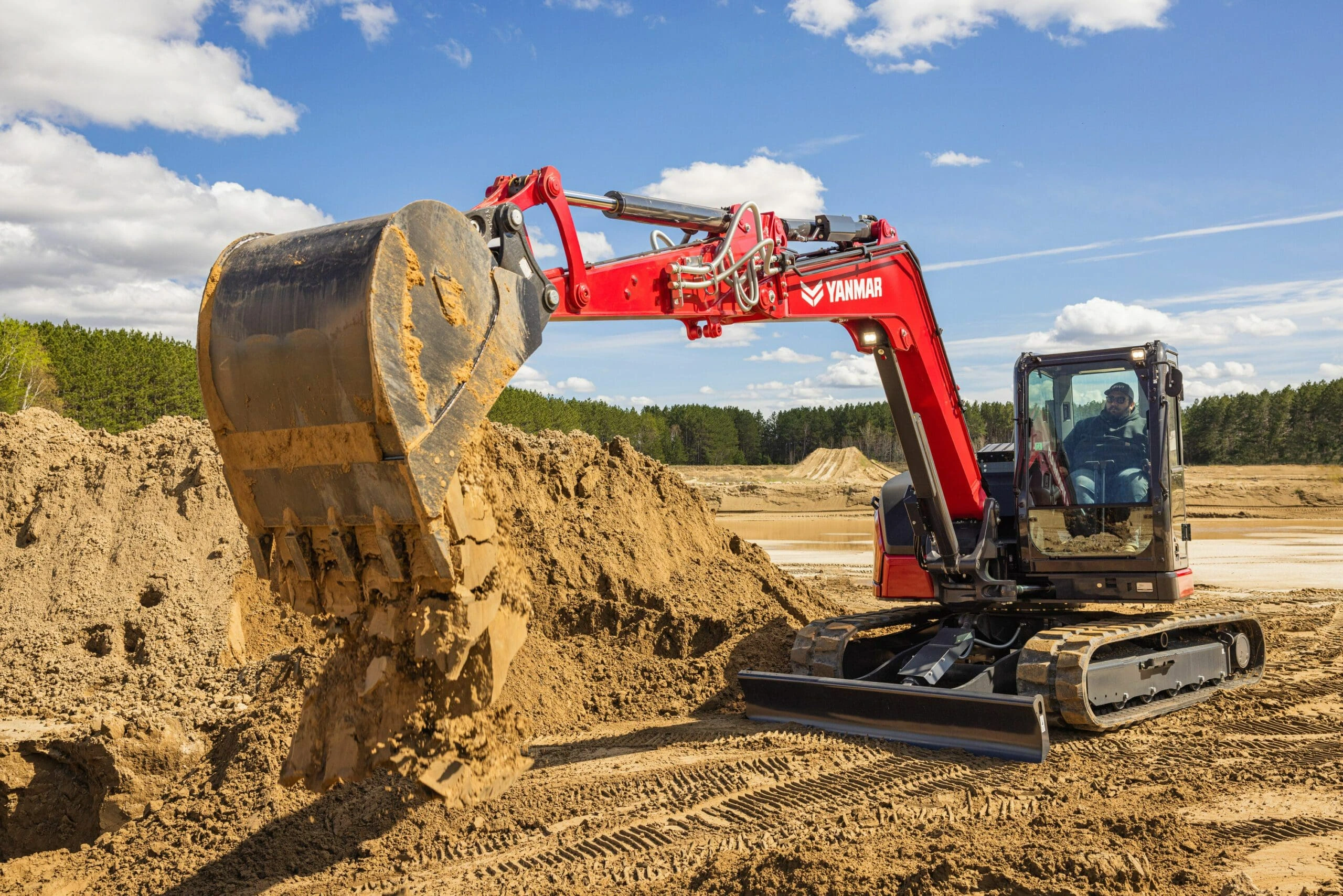

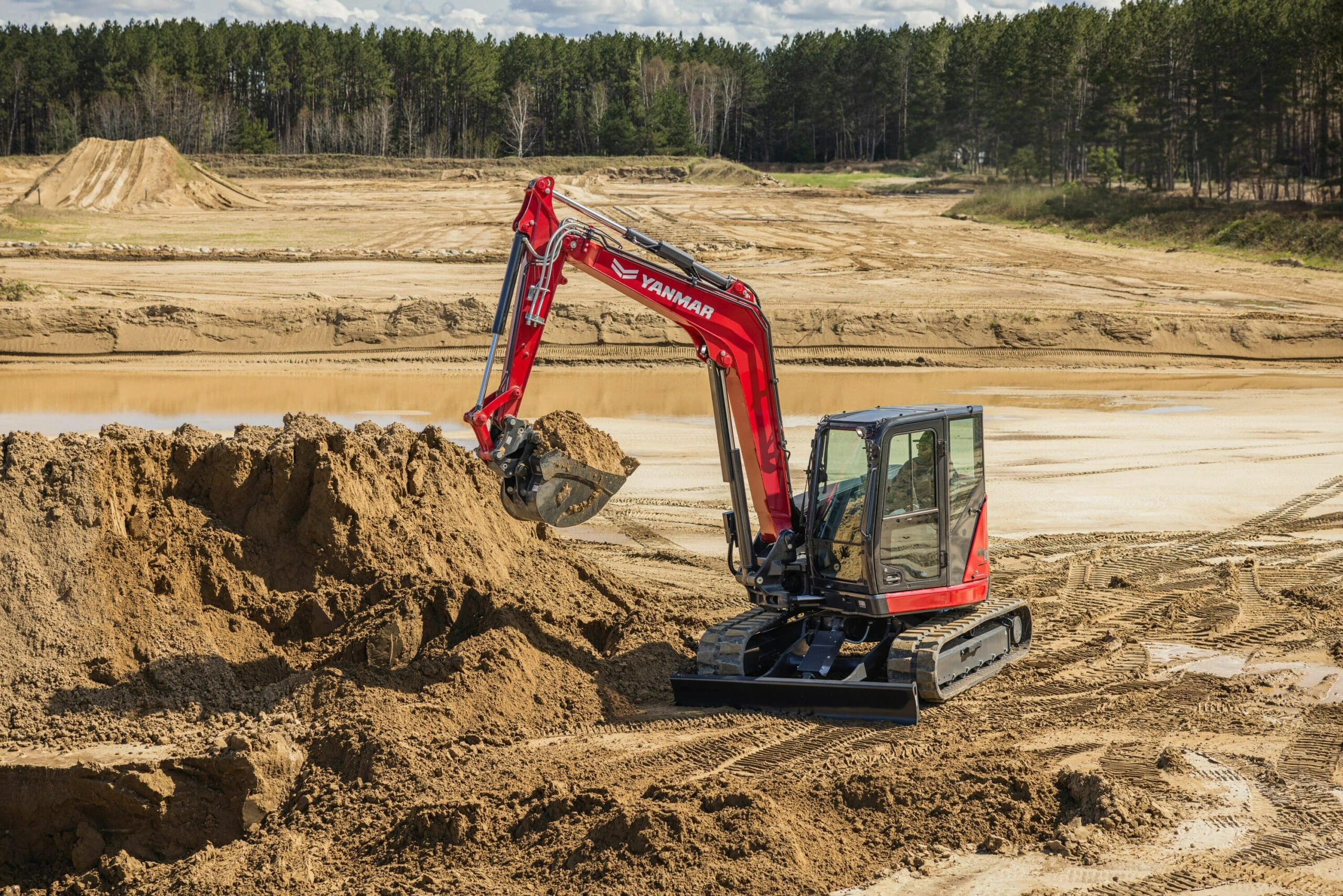

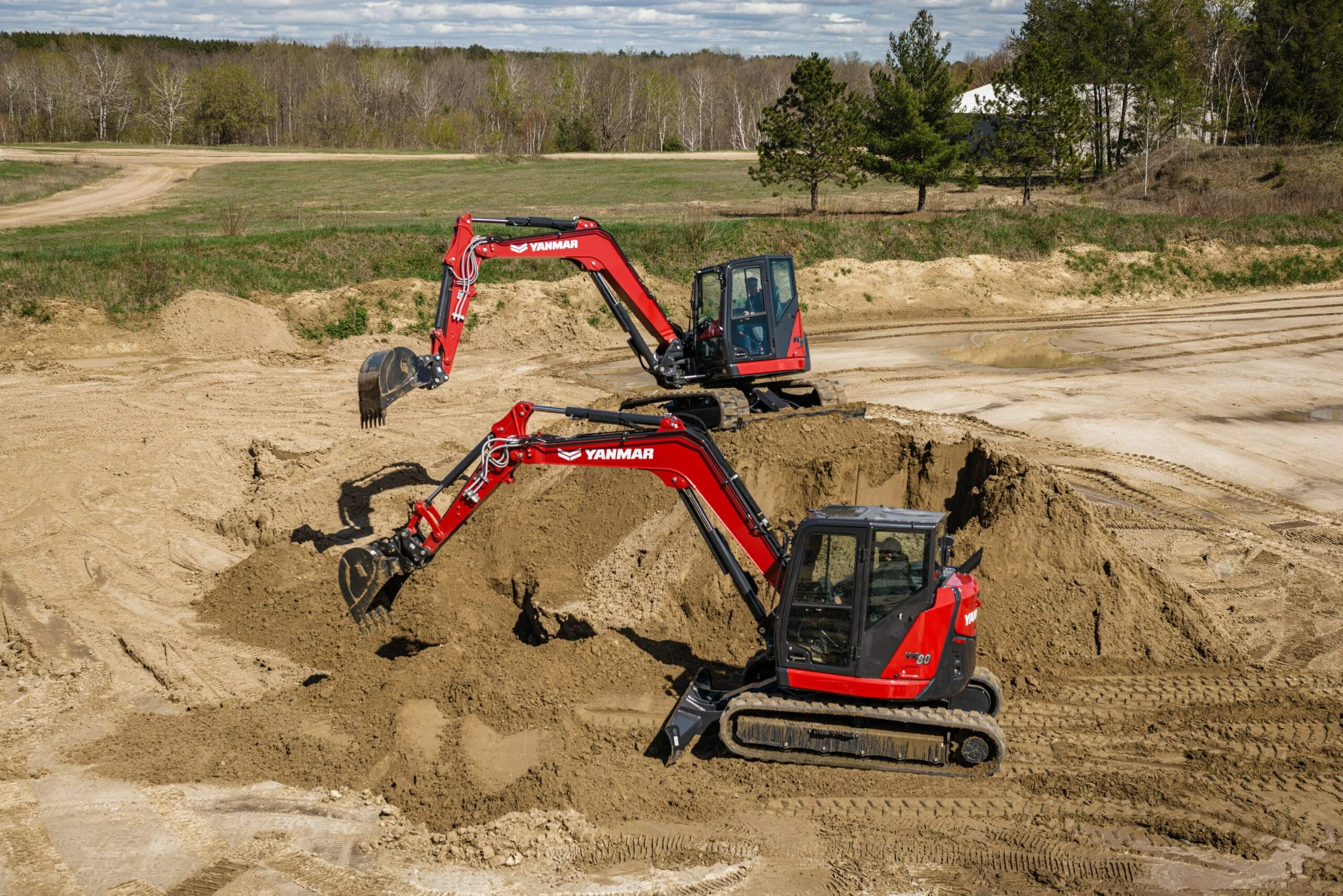

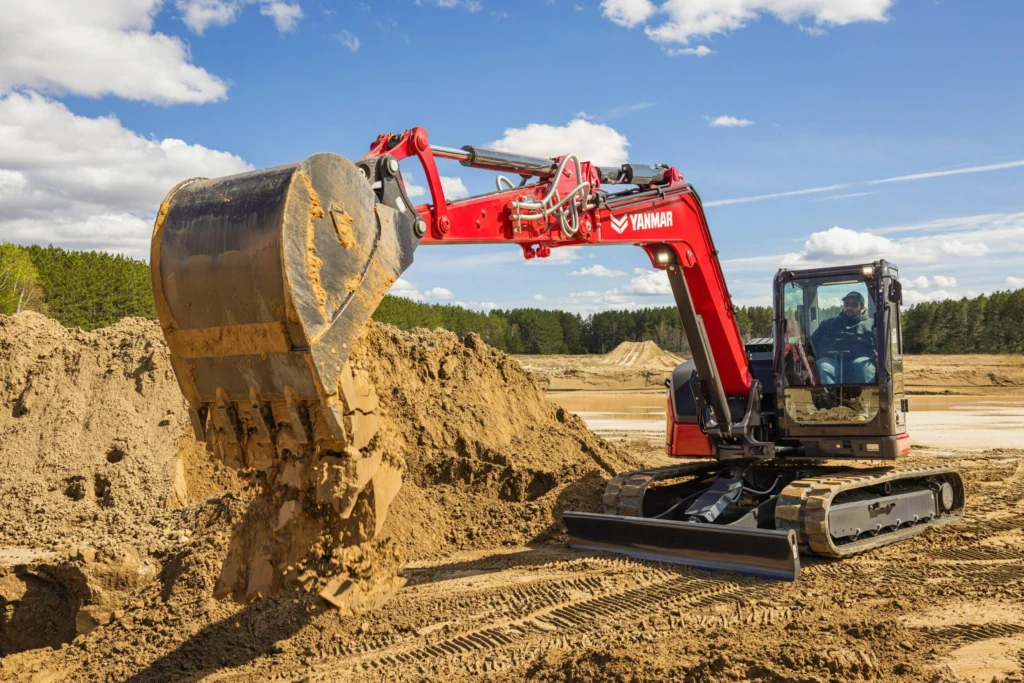

ViO80-7

Mini Excavator — 8 ton class

Leading efficiency and operator comfort.

The ViO80-7 goes where conventional excavators can’t, powered by a 67-horsepower Tier 4 Final Yanmar engine. Featuring 2-Pump Load Sensing (2PLS) hydraulics for a 13% reduction in fuel consumption, a 7-inch color display, and true zero tail swing for any confined jobsite.

Operating Weight

18,409 lbs

Max Dig Depth

14'3"

Fuel Tank Capacity

30.9 Gals

Horsepower

67.1 HP

Blade Width

7'5"

Travel Speed

2.9 MPH

Product Capabilities

True zero tail swing

Features of ViO80-7

Legendary power and durability

Our legacy of compact Yanmar diesel engines has never been stronger. With 67-horsepower and Tier 4 Final certification, it's an uncompromising union of performance and efficiency.

True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

SmartAssist technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

Efficient 2PLS hydraulics

Take advantage of fuel savings with no sacrifice to power. Yanmar outfits the ViO80-7 with 2PLS hydraulics for a 13% reduction in fuel consumption combined with an extraordinary boost in machine performance, productivity and travel speeds.

Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

Leading experience in the cab

Work in comfort with a quieter and more spacious operator area outfitted with ergonomic controls and a 7-inch color display. Keep an eye on your surroundings with increased visibility from more glass area and standard side and rear cameras.

Complete Machine Data.

Engine

Engine Type	Vertical water-cooled 4-cylinder diesel
Engine Model	YANMAR 4TNV98CT-VBV2
Engine Output (Power)	67.1 (50.0)/1,800 HP (kW)/rpm
Fuel Tank Capacity	30.9 (117) Gals (L)

Performance

Operating Weight (Cab / Rubber Track)	18,409 (8.3) lbs (t)
Operating Weight (Cab / Steel Track)	18,453 (8.4) lbs (t)
Max Dig Depth	14'3" (4,370 mm)
Max Digging Force, Bucket	10,813 (48.1) lbs (kN)
Max Digging Force, Arm	8,093 (36.0) lbs (kN)
Traveling Speed, High/Low	2.9 (4.8) / 1.6 (2.5) MPH (km/h)
Swing Speed	9.0 RPM
Boom Swing Angle (L/R)	60° / 60°

Hydraulics

Hydraulic Pump Capacity (Variable)	29.46 (111.5) x 2 GPM (L/min)
Hydraulic Gear Pump Capacity	4.5 (17.0) x 1 GPM (L/min)
Hydraulic Main Relief Set Pressure (Variable)	3,989 (27.5) x 2 PSI (MPa)

Dimensions

Blade Dimensions (Width x Height)	7'5" (2,290) x 1'5" (450) ft-in (mm)
Overall Length (D)	23'11" (7,290) ft-in (mm)
Overall Width (R)	7'5" (2,280) ft-in (mm)
Overall Height (M)	8'4" (2,540) ft-in (mm)
Wheelbase (G)	6'7" (2,010) ft-in (mm)
