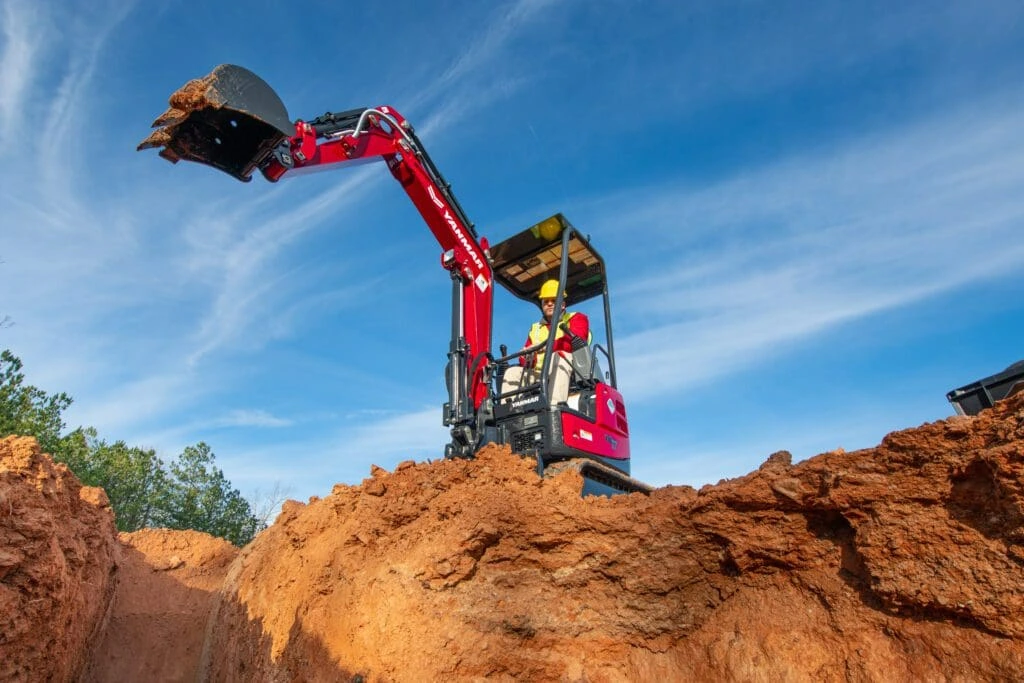

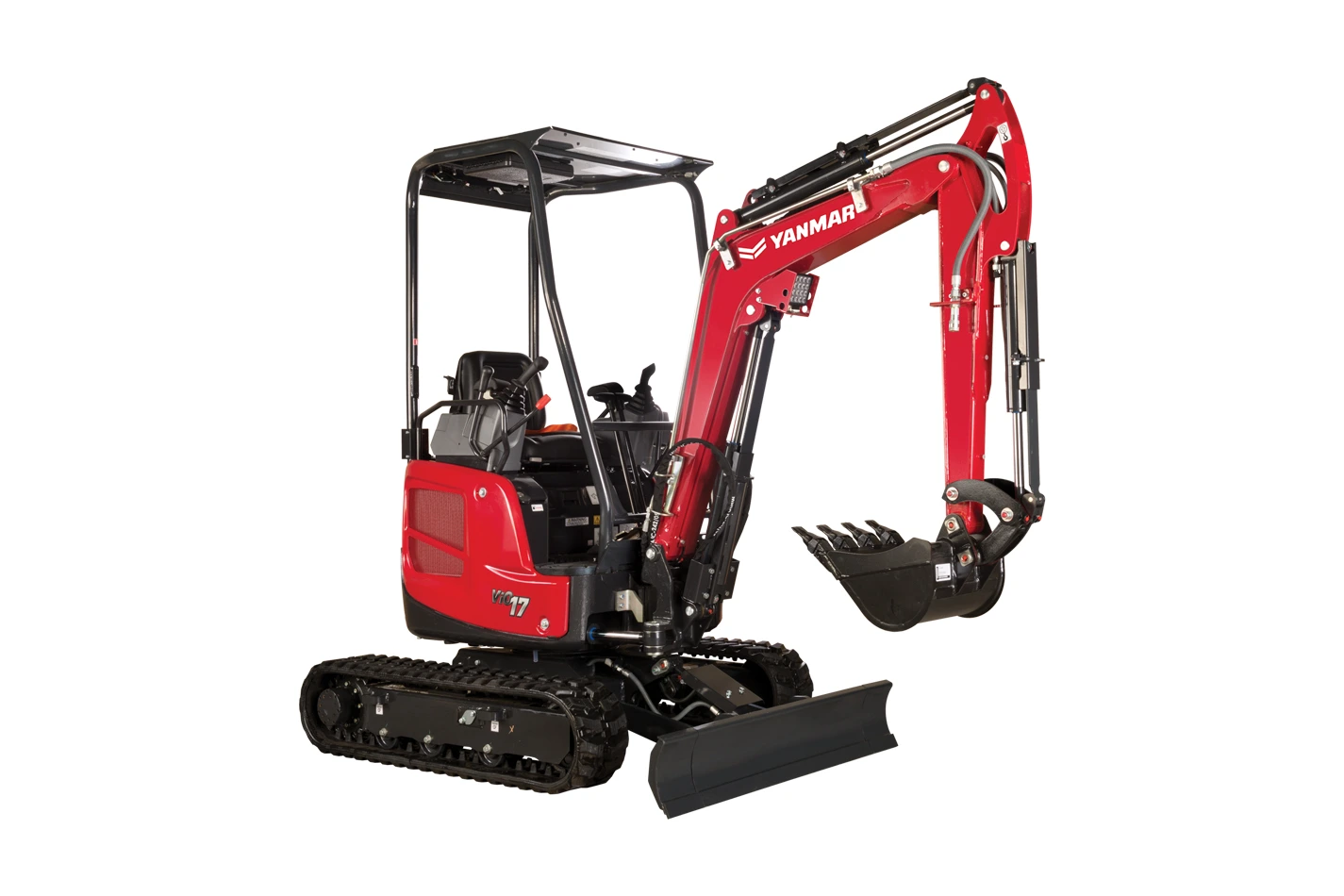

ViO17-1E

Mini Excavator — 1.8 ton class

Tight space specialist.

When tight spaces call and you need additional power and digging depth to get the job done quickly, ViO17-1E is the answer. This tight space taskmaster can go almost anywhere with its retractable undercarriage and true zero tail swing design.

Operating Weight

4,023 lbs

Max Dig Depth

7'7"

Fuel Tank Capacity

5.3 Gals

Horsepower

14.5 HP

Blade Width

4'2"

Travel Speed

2.6 MPH

Product Capabilities

True zero tail swing

Features of ViO17-1E

Triple cylinder performance

Producing a work-ready 14.5 horsepower, this Tier 4 Final rated Yanmar diesel engine is as quiet and efficient as it is reliable, making it always ready to work no matter the jobsite.

True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

Adjustable width tracks

Crawl your way into nearly any jobsite with tracks that hydraulically adjust from a stable 50" (1,280 mm) down to a nimble 37" (950 mm).

Intuitive pilot controls

Easy to learn and easy to master, joystick pilot controls give you smooth precision with quick pattern change capabilities to adapt to different operators.

Standard auxiliary circuit (PTO)

Power additional accessories with a standard auxiliary hydraulic circuit featuring an easy-to-use foot-control that provide precise flow control with lock-out capability.

Heavy Duty Cylinder Guards

Protect your investment and minimize downtime and repair costs. Cylinder guards reduce impact damage and shield the cylinder rod from abrasive material and hard impact.

Complete Machine Data.

Engine

Engine Type	Water-cooled 3-cylinder diesel
Engine Model	YANMAR 3TNV74F-SPBV
Engine Output (Power)	14.5 (10.8)/2,400 HP (kW)/rpm
Fuel Tank Capacity	5.3 (20) Gals (L)

Performance

Operating Weight	4,023 (1.8) lbs (t)
Max Dig Depth	7'7"
Max Digging Force, Bucket	3,474 (15.5) lbs (kN)
Max Digging Force, Arm	1,993 (8.9) lbs (kN)
Traveling Speed	2.6/1.3 (4.2/2.1) MPH (km/h)
Swing Speed	9.5 RPM
Boom Swing Angle (L/R)	42°/65°
Ground Contact Pressure (Rubber Track)	4.1 (28.6) PSI (kPa)

Hydraulics

Hydraulic Pump Capacity	Double Variable Displacement Pump: 2 x 4.6 (2 x 17.6) / Gear Pump: 3.5 (13.2) GPM (L/min)
Hydraulic Main Relief Pressure	2,986 (20.6) PSI (MPa)

Dimensions

Blade Dimensions (Width x Height)	4'2"/3'1" x 9" (1,280/950 x 235) ft-in (mm)
Track Width (Retracted / Expanded)	3'1" (950) / 4'2" (1,280) ft-in (mm)
Overall Length	12'6" (3,810) ft-in (mm)
Overall Height	7'7" (2,300) ft-in (mm)
Min Ground Clearance	10" (260) in (mm)
