ViO25-6B

Mini Excavator — 2.5 ton class

Performs under pressure.

When tight residential or inner-city jobsites call for big time performance, the ViO25-6B delivers. This 2.5-ton mini-excavator fits through narrow openings with zero tail swing and digs to depths up to 10 feet, powered by a reliable Tier 4 Final Yanmar diesel.

Operating Weight

5,908 lbs

Max Dig Depth

10'

Fuel Tank Capacity

8 Gals

Horsepower

20.4 HP

Blade Width

4'11"

Travel Speed

2.8 MPH

Product Capabilities

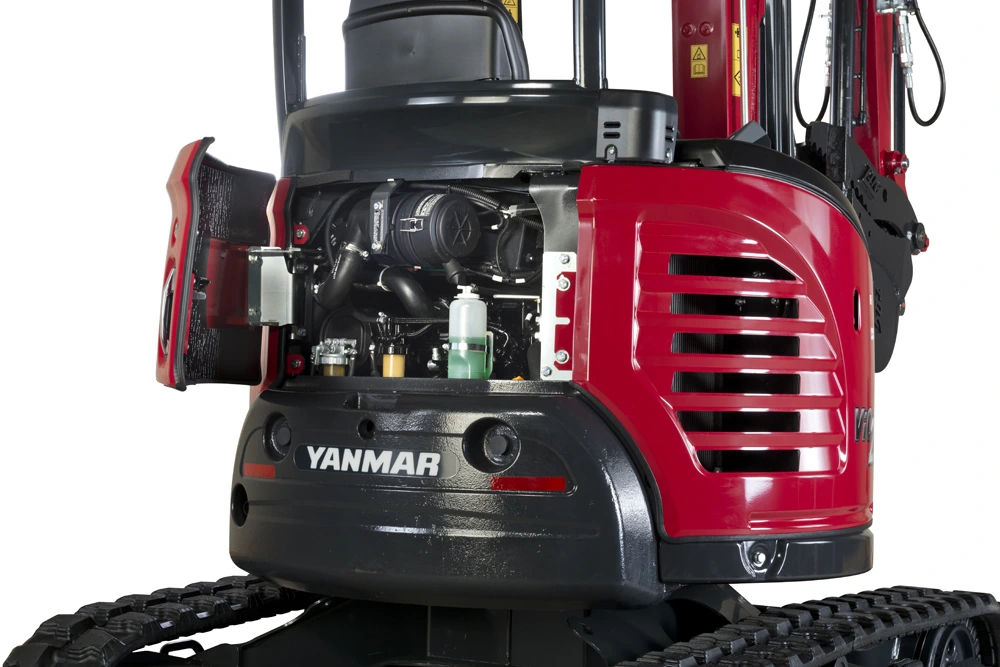

Easy to access, easy to service

Features of ViO25-6B

Performance on demand

With Tier 4 Final rated efficiency, 20.4-horsepower, auto deceleration and ECO mode, our legendary Yanmar diesel engines provide performance when you need it, and fuel savings when you don't.

True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

SmartAssist technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

Standard Auto-Decel

Not only will you save fuel, but you'll reduce the noise of an idle machine running full throttle for no reason. Save money and your sanity.

Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

Convenient hydraulics

Choose your action and the perfect flow with the PTO Selector Valve and standard proportional control. Select single or double action on the auxiliary circuit.

Complete Machine Data.

Engine

Engine Type	Water-cooled 4-cylinder diesel
Engine Model	Tier 4 Final 3TNV80F-SXNBV
Engine Output (Power)	20.4 (15.2)/2,500 HP (kW)/rpm
Fuel Tank Capacity	8 (30.3) Gals (L)

Performance

Operating Weight (Canopy / Rubber Track)	5,908 (2.68) lbs (t)
Operating Weight (Cabin / Rubber Track)	6,140 (2.79) lbs (t)
Max Dig Depth	10'
Max Digging Force, Bucket	4,788 (21.3) lbs (kN) w/ QC
Max Digging Force, Arm	2,833 (12.6) lbs (kN) w/ QC
Traveling Speed, High/Low	2.8 (4.5) / 1.7 (2.8) MPH (km/h)
Swing Speed	10 RPM
Boom Swing Angle (L/R)	48° / 74°

Hydraulics

Hydraulic Pump Capacity	Double variable displacement pump: 2 x 7.9 (2 x 30) GPM (L/min)
Hydraulic Gear Pump Capacity	5.6 (21.3) GPM (L/min)

Dimensions

Blade Width	4'11" (1,500) ft-in (mm)
Overall Length	13'6" (4,120) ft-in (mm)
Overall Height	8'3" (2,525) ft-in (mm)
Wheelbase	6'8" (2,040) ft-in (mm)
Min Ground Clearance	1'3" (380) ft-in (mm)
