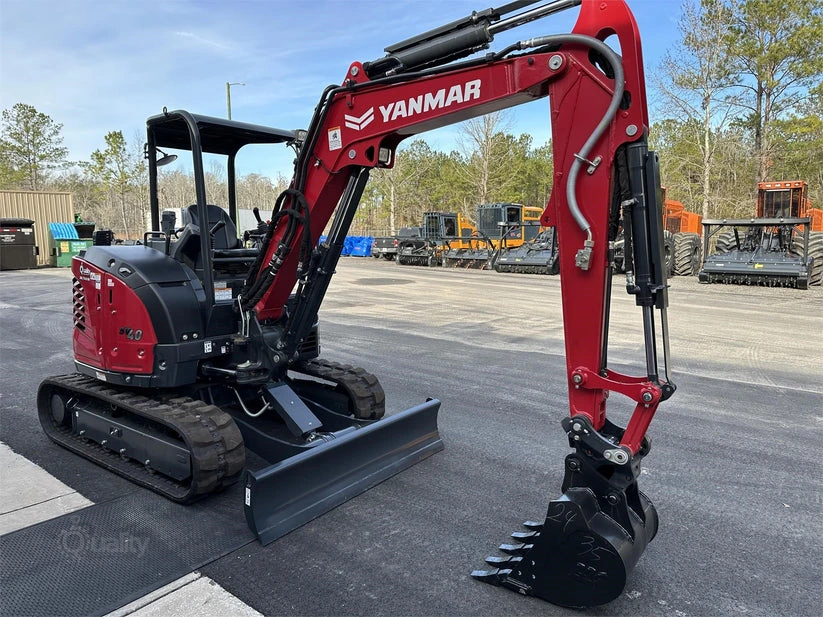

SV40

Mini Excavator — 4 ton class

This changes everything.

The SV40 redefines the mini excavator category with best-in-class power, digging force and lifting capacity. Featuring 39HP, a patented hydraulic quick-coupler system, auto-shifting two-speed travel, standard blade float control, and an innovative cab with LCD monitoring.

Operating Weight

9,206 lbs

Max Dig Depth

11'10"

Fuel Tank Capacity

14.8 Gals

Horsepower

39 HP

Blade Width

6'8"

Travel Speed

2.9 MPH

Product Capabilities

Hard work shouldn't feel like it

Features of SV40

Best-in-class power

Let this four-cylinder Tier 4 Final Yanmar diesel make quick work of the biggest job with a nearly unstoppable 39-horsepower and the added efficiency of auto deceleration and ECO mode.

Tight tail swing

The compact design allows the counterweight to be attached tight to the house resulting in near-zero tail swing performance for tight jobsite capability.

SmartAssist technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

Standard eco mode

Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.

Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

Convenient hydraulics

Two available auxiliary circuits, standard proportional control, and PTO Selector Valve allows you to set the perfect flow and choose single or double action.

Complete Machine Data.

Engine

Engine Type	Water-cooled 4-cylinder diesel
Engine Model	YANMAR 4TNV88C-PBV1
Engine Output (Power)	39.0 (29.1)/2,400 HP (kW)/rpm
Fuel Tank Capacity	14.8 (55) Gals (L)

Performance

Operating Weight (Canopy / Rubber Track)	9,206 (4,175) lbs (kg)
Operating Weight (Cabin / Rubber Track)	9,515 (4,315) lbs (kg)
Operating Weight (Cabin / Steel Track)	9,801 (4,445) lbs (kg)
Max Dig Depth	11'10" (3,610 mm)
Max Digging Force, Bucket	7,209 (3,270) lbs (kN)
Max Digging Force, Arm	4,211 (1,910) lbs (kN)
Traveling Speed, High/Low	2.9/1.5 (4.6/2.4) MPH (km/h)
Swing Speed	10 RPM
Boom Swing Angle (L/R)	43° / 65°

Hydraulics

Hydraulic Pump Capacity	11.2+11.2+9.7+2.8 (42.5+42.5+37+10.8) GPM (L/min)
Hydraulic Main Relief Set Pressure (P1, P2)	3,553 (24.49) PSI (MPa)

Dimensions

Blade Dimensions (Width x Height)	6'8" x 15.2" (1,740 x 385) ft-in (mm)
Overall Length (D)	18' (5,500) ft (mm)
Overall Width (L)	5'8" (1,740) ft-in (mm)
Overall Height (J)	8'2" (2,540) ft-in (mm)
Wheelbase (F)	7'3" (2,230) ft-in (mm)
