SV100-7
The SV100-7 delivers impressive 72-horsepower Tier 4 Final performance with an ultra-tight turning radius for confined jobsites. With 2PLS hydraulics reducing fuel consumption by 13%, a 7-inch color display, and spacious cab, it’s the ultimate 10-ton mini excavator.
Operating Weight
21,671 lbs
Max Dig Depth
14'11"
Fuel Tank Capacity
30.9 Gals
Horsepower
72 HP
Blade Width
7'7"
Travel Speed
2.7 MPH
- 4-Year Warranty
- Uptime Guaranteed.™
- Delivery Available
The SV100-7 delivers impressive 72-horsepower Tier 4 Final performance with an ultra-tight turning radius for confined jobsites. With 2PLS hydraulics reducing fuel consumption by 13%, a 7-inch color display, and spacious cab, it’s the ultimate 10-ton mini excavator.
Features of SV100-7
01
Our most powerful excavator
With a robust 72-horsepower of Tier 4 Final Yanmar performance under the cowl, the SV100-7 represents our most powerful mini excavator so you can easily dig deeper and run attachments with confidence.
02
Ultra tight tail swing

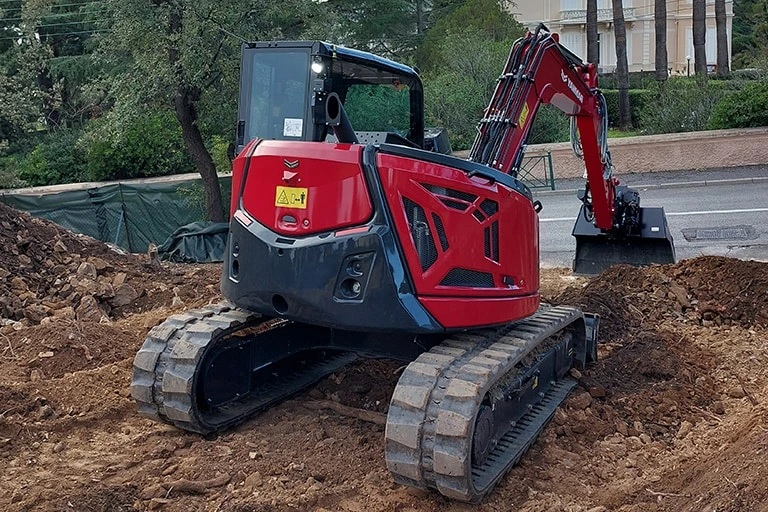

The compact design allows the counterweight to be attached tight to the house resulting in near-zero tail swing performance for tight jobsite capability.
03
SmartAssist technology
Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.
04
Unbeatable cab comfort
Work in comfort with a quieter and more spacious operator area outfitted with ergonomic controls and a 7-inch color display. Keep an eye on your surroundings with increased visibility from more glass area and standard side and rear cameras.
05
Convenient maintenance access
Complete maintenance work and refueling quickly and efficiently with an engine bay designed for maximum accessibility. The open cabin hoods put the generator, valves, radiator, oil-water separator and more right at your fingertips.
06
Efficient 2PLS Hydraulics
Take advantage of fuel savings with no sacrifice to power. Yanmar outfits the SV100-7 with 2PLS hydraulics for a 13% reduction in fuel consumption combined with an extraordinary boost in machine performance, productivity and travel speeds.
Complete Machine Data.
| Engine Type | Vertical water-cooled 4-cylinder diesel |
| Engine Model | 4TNV98CT-VBV2 |
| Engine Output (Power) | 72 (53.7)/2,100 HP (kW)/rpm |
| Fuel Tank Capacity | 30.9 (117) Gals (L) |
| Operating Weight (Cab / Rubber Track) | 21,671 (9.8) lbs (t) |
| Operating Weight (Cab / Steel Track) | 21,914 (9.9) lbs (t) |
| Max Dig Depth | 14'11" (4,570 mm) |
| Max Digging Force, Bucket | 12,027 (53.5) lbs (kN) |
| Max Digging Force, Arm | 9,487 (42.2) lbs (kN) |
| Traveling Speed, High/Low (Rubber) | 2.7 (4.3) / 1.3 (2.1) MPH (km/h) |
| Traveling Speed, High/Low (Steel) | 2.5 (4.0) / 1.2 (2.0) MPH (km/h) |
| Swing Speed | 9.0 RPM |
| Boom Swing Angle (L/R) | 60° / 60° |
| Hydraulic Pump Capacity (Variable) | 36.4 (137.8) x 2 GPM (L/min) |
| Hydraulic Pump Capacity (Gear) | 5.5 (21) x 1 GPM (L/min) |
| Hydraulic Main Relief Set Pressure (Variable) | 3,988 (27.5) x 2 PSI (MPa) |
| Blade Dimensions (Width x Height) | 7'7" (2,320) x 1'8" (520) ft-in (mm) |
| Overall Length (D) | 24'8" (7,530) ft-in (mm) |
| Overall Width (R) | 7'7" (2,320) ft-in (mm) |
| Overall Height (M) | 8'9" (2,670) ft-in (mm) |
| Wheelbase (F) | 21'1" (6,440) ft-in (mm) |
