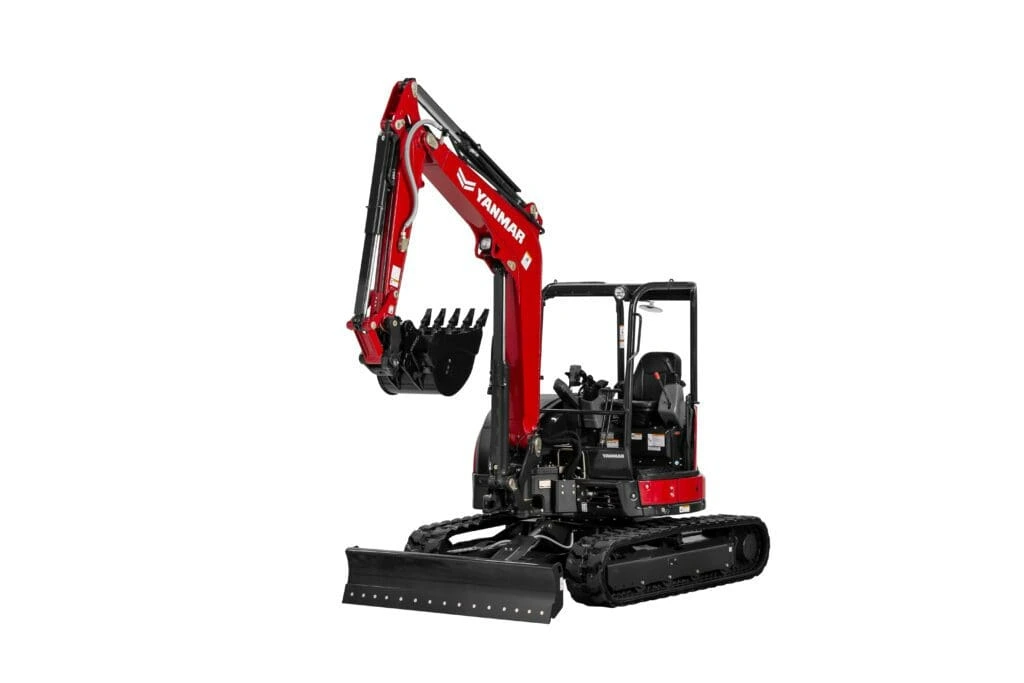

ViO50-6A

Mini Excavator — 5 ton class

Zero swing game changer.

When you combine best-in-class performance with true zero tail swing, you get the ViO50-6A. This 5-ton mini excavator harnesses 39HP Tier 4 Final Yanmar diesel power with the compact workspace efficiency of zero tail swing, delivering unmatched tight-space performance.

Operating Weight

10,417 lbs

Max Dig Depth

12'3"

Fuel Tank Capacity

17.4 Gals

Horsepower

39 HP

Blade Width

6'6"

Travel Speed

2.9 MPH

Product Capabilities

True zero tail swing

Features of ViO50-6A

Powerfully efficient

Let this four-cylinder Tier 4 Final Yanmar diesel make quick work of the biggest job with a nearly unstoppable 39-horsepower and the added efficiency of auto deceleration and ECO mode.

True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

SmartAssist technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

Standard eco mode

Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.

Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

Convenient hydraulics

Two available auxiliary circuits, standard proportional control, and PTO Selector Valve allows you to set the perfect flow and choose single or double action.

Complete Machine Data.

Engine

Engine Type	Vertical 4-cylinder water-cooled direct injection diesel engine
Engine Model	YANMAR 4TNV88C-PBV
Engine Output (Power)	39 (29.1)/2,400 HP (kW)/rpm
Fuel Tank Capacity	17.4 (66) Gals (L)

Performance

Operating Weight (Cabin / Rubber Track)	10,792 (4.90) lbs (t)
Operating Weight (Canopy / Rubber Track)	10,417 (4.73) lbs (t)
Operating Weight (Cabin / Steel Track)	11,078 (5.03) lbs (t)
Operating Weight (Canopy / Steel Track)	10,703 (4.86) lbs (t)
Max Dig Depth	12'3" (3,740) ft-in (mm)
Max Digging Force, Bucket	8,206 (36.5) lbs (kN) without quick coupler
Max Digging Force, Arm	5,103 (22.7) lbs (kN) without quick coupler
Traveling Speed, High/Low	2.9/1.5 (4.6/2.4) MPH (km/h)
Swing Speed	10 RPM
Boom Swing Angle (L/R)	68° / 68°

Hydraulics

Hydraulic Pump Capacity	11.2+11.2+9.7+2.8 (42.5+42.5+37+10.8) GPM (L/min)
Hydraulic Main Relief Set Pressure	3,553 x 2 + 3,133 + 566 (24.5x2+21.6+3.9) PSI (MPa)

Dimensions

Blade Dimensions (Width x Height)	6'6" x 1'4" (1,970 x 400) ft-in (mm)
Overall Length (D)	18'10" (5,740) ft-in (mm)
Overall Width (L)	6'4.5" (1,940) ft-in (mm)
Overall Height (J)	8'4" (2,540) ft-in (mm)
Wheelbase (F)	8'6" (2,590) ft-in (mm)
