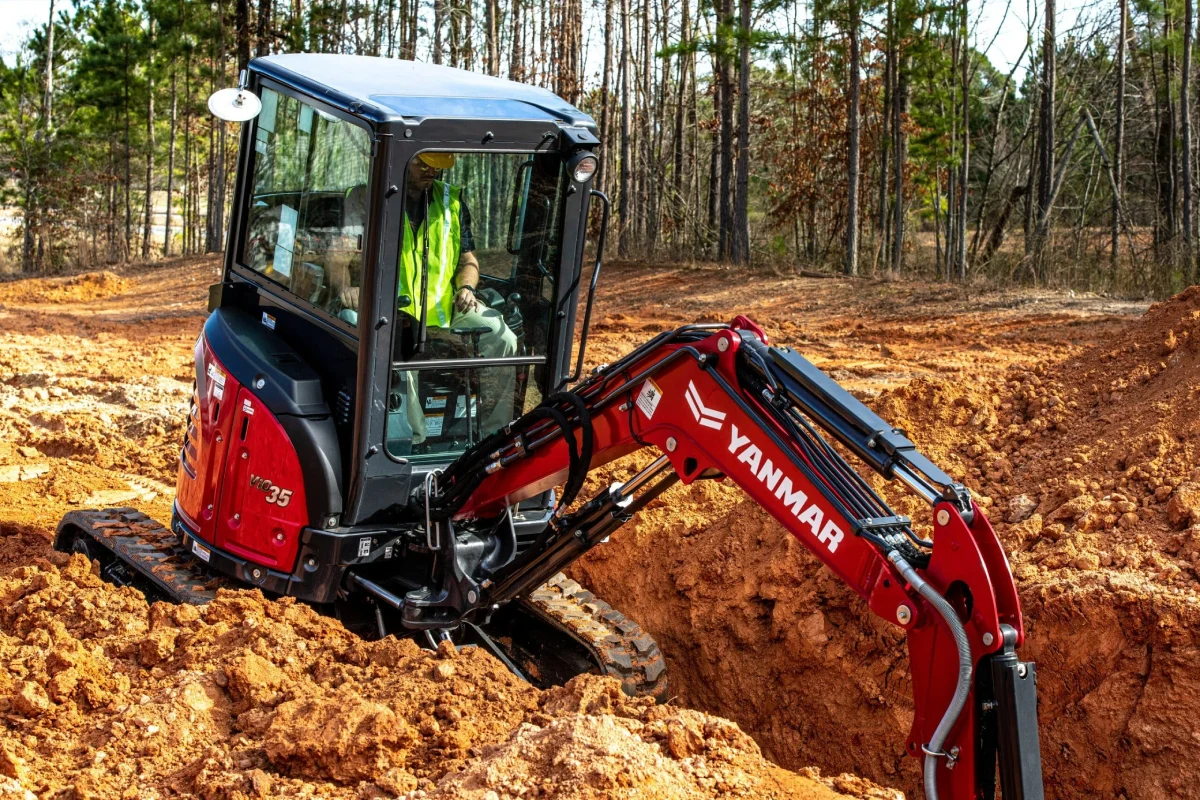

ViO35-6A

Mini Excavator — 3.5 ton class

Do-it-all performance.

Step up to the 3.5-ton class ViO35-6A for the perfect balance of power, capability, comfort, and efficiency. True zero tail swing, optional auto-shifting 2-speed travel, and Tier 4 Final power deliver up to 20% less fuel consumption than previous models.

Operating Weight

7,905 lbs

Max Dig Depth

11'3"

Fuel Tank Capacity

10.8 Gals

Horsepower

24.4 HP

Blade Width

5'8"

Travel Speed

2.7 MPH

Product Capabilities

Service at your fingertips

Features of ViO35-6A

Powerfully efficient

With Tier 4 Final certified efficiency, 24.4-horsepower, auto deceleration and ECO mode, our legendary Yanmar diesel engines provide performance when you need it, and fuel savings when you don't.

True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

SmartAssist technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

Standard eco mode

Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.

Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

Convenient hydraulics

Choose your action and the perfect flow with the PTO Selector Valve and standard proportional control. Select single or double action on the auxiliary circuit.

Complete Machine Data.

Engine

Engine Type	Water-cooled 4-cycle diesel
Engine Model	3TNV88F-ESBV
Engine Output (Power)	24.4 (18.2)/2,200 HP (kW)/rpm
Fuel Tank Capacity	10.8 (41) Gals (L)

Performance

Operating Weight (Canopy / Rubber Track)	7,905 (3.58) lbs (t)
Operating Weight (Cabin / Rubber Track)	8,214 (3.72) lbs (t)
Max Dig Depth	11'3" (3,440 mm)
Max Digging Force, Bucket	7,216 (32.1) lbs (kN) without quick coupler
Max Digging Force, Arm	4,586 (20.4) lbs (kN) without quick coupler
Traveling Speed, High/Low	2.7 (4.5) / 1.6 (2.7) MPH (km/h)
Swing Speed	9.5 RPM
Boom Swing Angle (L/R)	43° / 65°

Hydraulics

Hydraulic Pump Capacity (Variable)	9.8 (37.0) x 2 GPM (L/min)
Hydraulic Pump Capacity (Gear)	6.9 (26.2) x 1, 2.9 (10.8) x 1 GPM (L/min)

Dimensions

Blade Width (V)	5'8" (1,740) ft-in (mm)
Overall Length (D)	17'3" (5,270) ft-in (mm)
Overall Width (R)	5'9" (1,740) ft-in (mm)
Overall Height	8'1" (2,470) ft-in (mm)
Wheelbase (G)	7'1" (2,160) ft-in (mm)
Min Ground Clearance (J)	1'3" (370) ft-in (mm)
