20 ton Wheel Loader For Sale

Equipment For Sale, Wheel Loaders

XCMG

XC958U

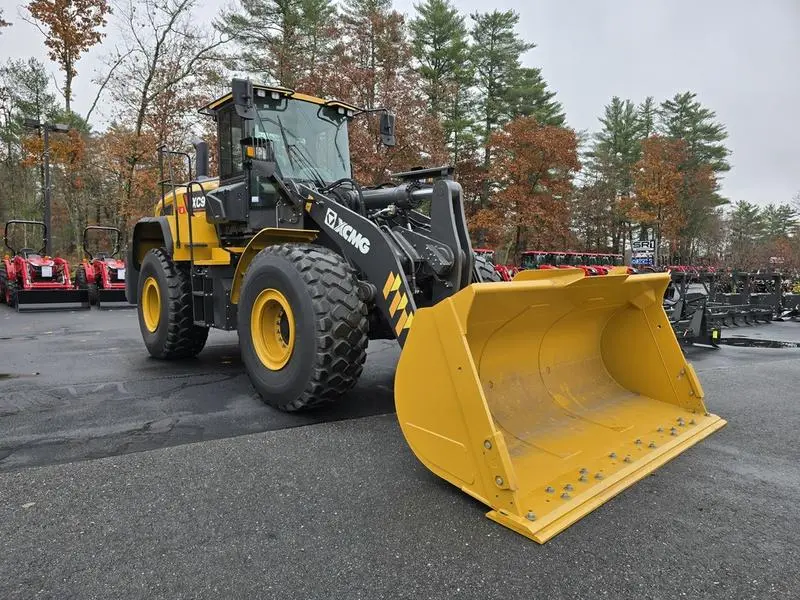

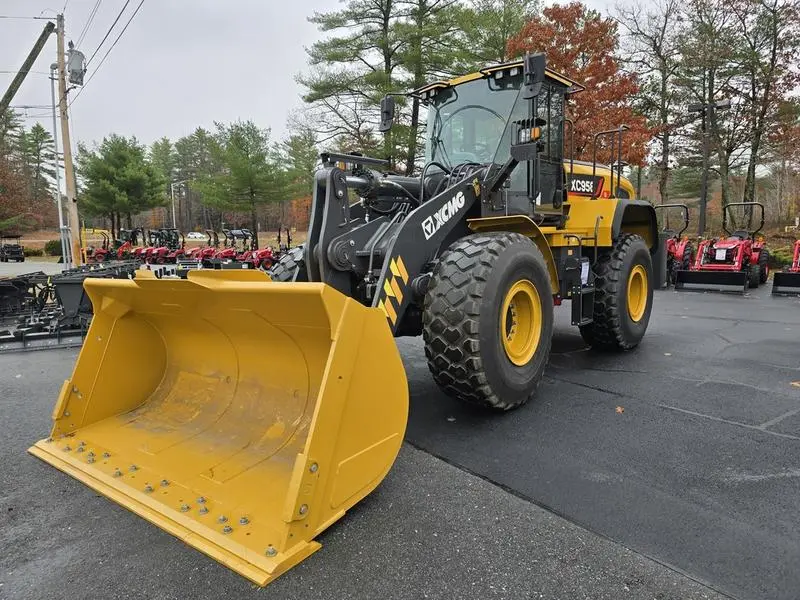

XCMG XC9 Series Wheel Loader — 225.2 hp / 40,810 lb operating weight

“Move mountains, one bucket at a time.”

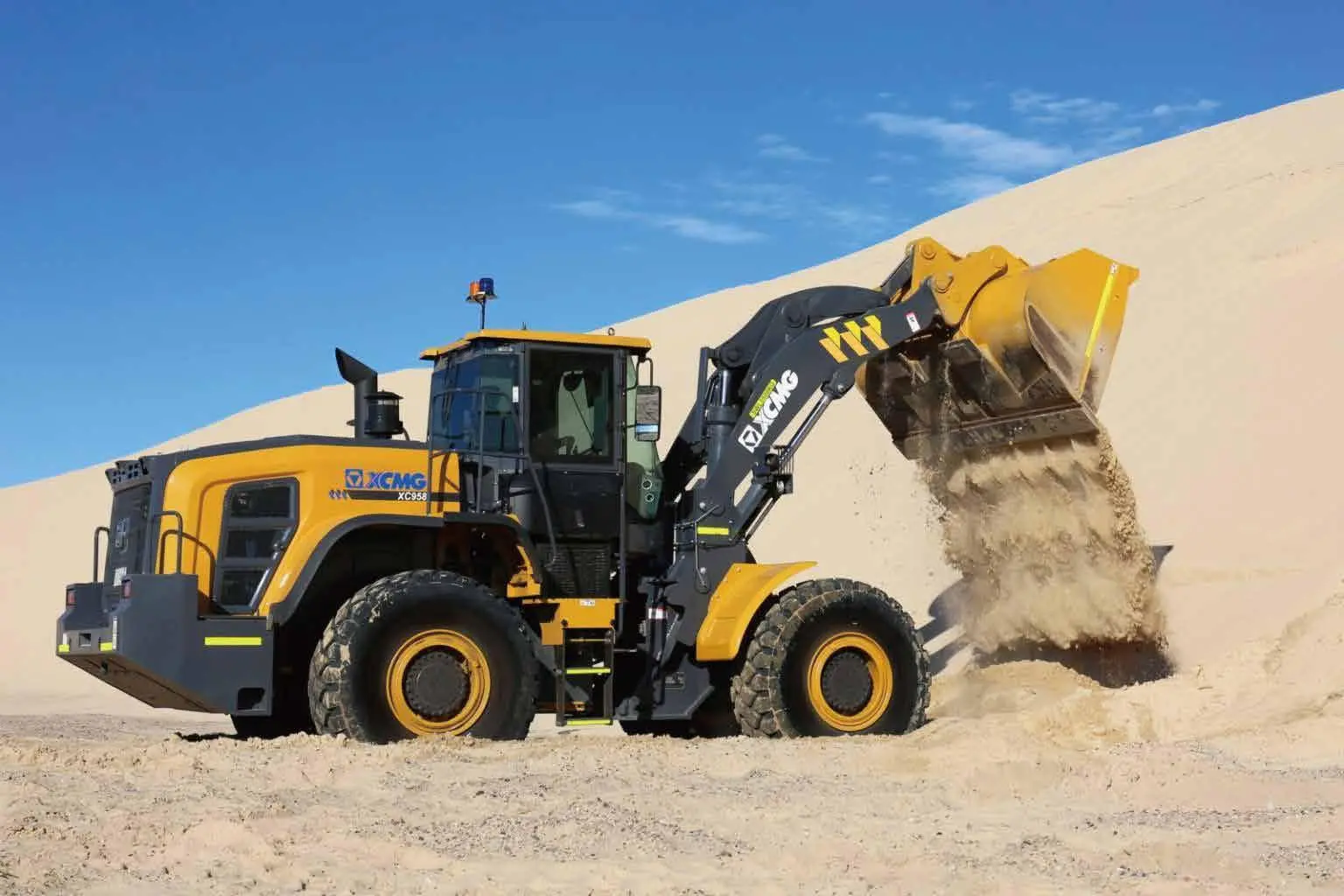

The XCMG Wheel Loader XC958U is a powerful and versatile payloader with a 5-yard bucket (5yd³⁾built for demanding construction and industrial tasks. With advanced hydraulics and load-sensing steering, it offers precise maneuvering for material handling and site preparation while maximizing efficiency with a comfortable, air-conditioned cab and ergonomic controls, ensuring operator safety and comfort. Making it an ideal choice for heavy-duty applications.

Financing options at 0% interest.

This 20-ton front-end wheel loader is for sale with flexible monthly payments.

Call us now to book a demo.

Engine Power

225.2 hp

Operating Weight

40,810 lb

Bucket Capacity

4.58 yd³

Engine Type

Cummins QSL9 T4F

Max Travel Speed

24.8 mph

Fuel Tank Capacity

77 gal

Product Capabilities

Built to Load, Engineered to Last.

Financing options at 0% interest.

This 20-ton front-end wheel loader is for sale with flexible monthly payments.

Call us now to book a demo.

Features of XC958U

Cummins Powerplant

Powered by a Cummins Tier 4 Final / EU Stage V diesel engine, delivering exceptional torque and fuel efficiency for heavy load cycles.

Load-Sensing Hydraulics

The intelligent load-sensing hydraulic system automatically matches flow to demand, cutting fuel burn and extending component life.

Panoramic Operator Cab

Slightly-pressurized low-noise cab with ergonomic controls, high-visibility glazing, and a full-adjust suspension seat for all-day comfort.

One-Stop Maintenance

Full-tilting cab and large-angle backward-opening hood centralize oil drainage and daily service points for fast maintenance.

Heavy-Duty Z-Bar Linkage

Cast-steel Z-bar loader linkage delivers superior breakout force and parallel bucket movement, keeping loads level from ground to full lift height.

Advanced Diagnostics & Telematics

On-board diagnostics with optional telematics track fuel burn, cycle times, and maintenance intervals so fleet managers can maximize uptime.

Complete Machine Data.

Specifications

Engine Power	225.2 hp
Operating Weight	40,810 lb
Bucket Capacity	4.58 yd³

Engine & Performance

Engine Type	Cummins QSL9 T4F
Max Travel Speed	24.8 mph
Fuel Tank Capacity	77 gal

Loading Performance

Max Dumping Height	10 ft 6 in
Dump Reach at Max Height	4 ft 3 in
Bucket Breakout Force	39,341 lbf
Cycle Time (Raise/Dump/Lower)	5.9 / 1.4 / 3.5 sec
Rated Load	11,023 lb

Dimensions

Overall Length (Bucket on Ground)	27 ft 3 in
Overall Width (over Tires)	9 ft 2 in
Overall Height (to Cab Roof)	11 ft
Wheelbase	10 ft 8 in
Ground Clearance	17.7 in
