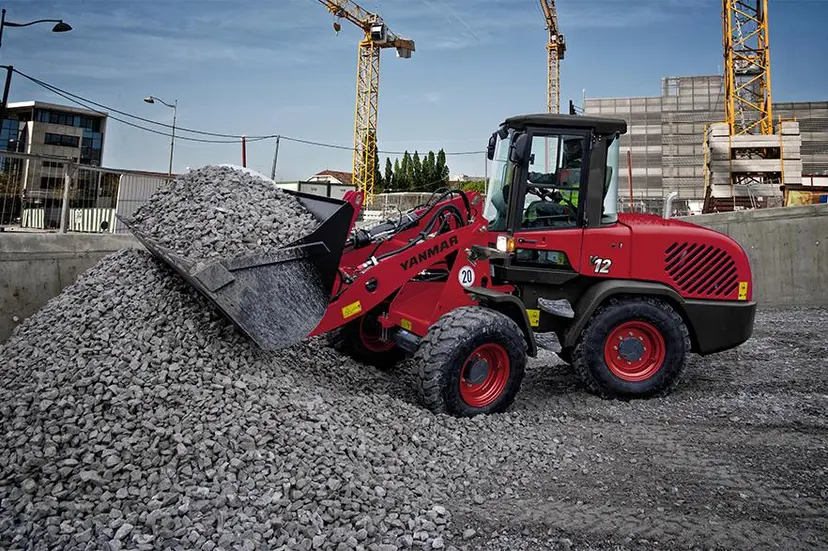

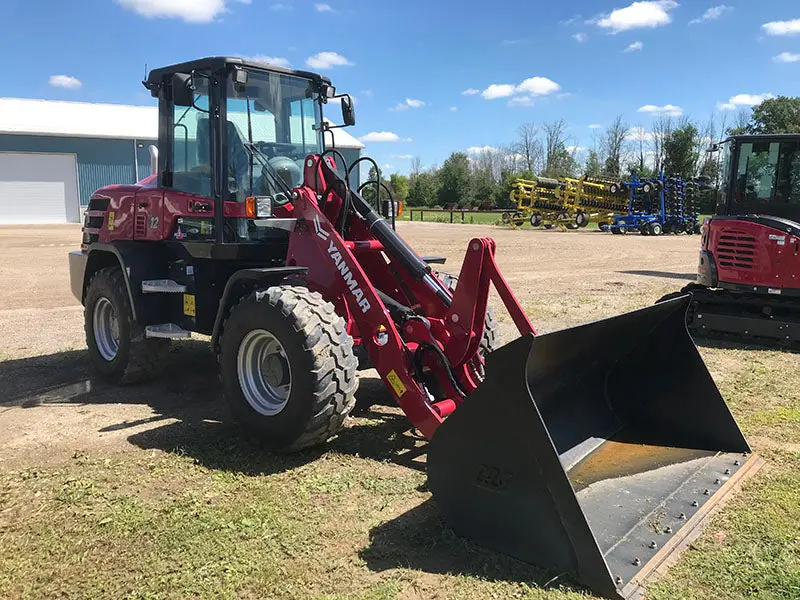

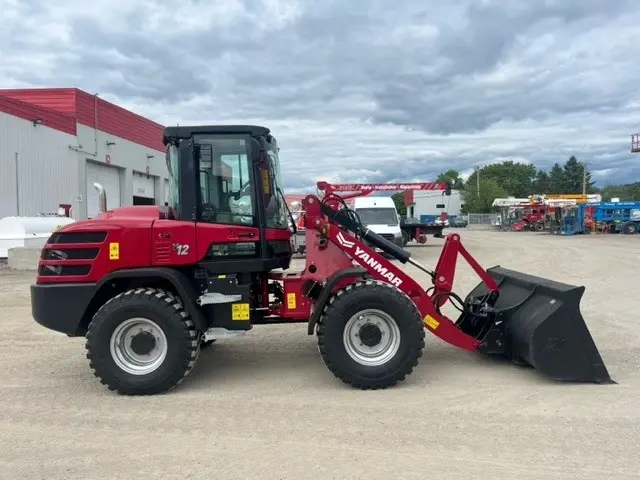

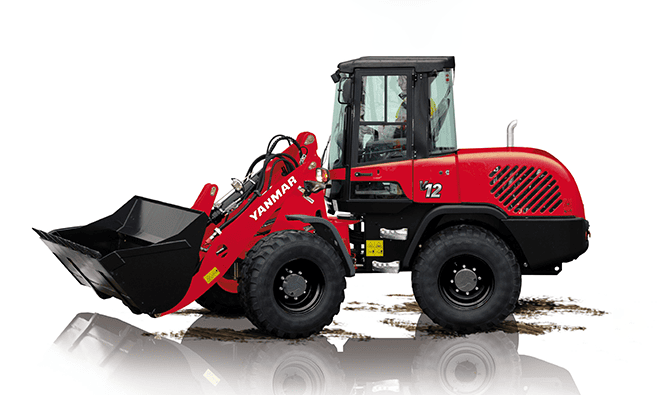

V12

Wheel Loader — 100 HP

Big power with serious comfort and agility.

The V12 is Yanmar’s biggest wheel loader, blending big power with serious comfort and agility. Powered by a 100HP Tier 4 Final/EU Stage 5 engine, the V12 delivers the high tipping load capacity and breakout force needed for the most demanding jobs, all with the compact agility Yanmar is known for.

Operating Weight

15,432 lbs

Horsepower

100 HP

Bucket Capacity

1.57–2.35 yd³

Tipping Load

11,023 lbs

Max Travel Speed

11.8 mph

Breakout Force

13,264 lbs

Product Capabilities

Maximum power, maximum precision

Features of V12

Maximum power delivery

The 100HP four-cylinder turbo diesel engine with intercooler and EPA Tier 4 Final / EU Stage 5 certification delivers maximum power with minimal fuel consumption and emissions.

Smooth hydrostatic drive

The full hydrostatic transmission ensures smooth, efficient movement with infinitely variable speed control and optional high-speed mode of 22 mph for fast travel between tasks.

Stability over uneven ground

Rear axle oscillation delivers a smooth ride over uneven terrain and keeps all four wheels on the ground, so you don't lose traction or excess material from the bucket.

Multiple attachments

Choose and quickly swap from several available specialty buckets, grapples and fork attachments giving your wheel loader even greater jobsite versatility for any material type.

Standard auxiliary hydraulics

Power additional accessories with auxiliary hydraulic connections and set the perfect flow with standard adjustable proportional control for precise operations.

Single-pin articulation

With 40-degrees of articulation in each direction, the single pin design provides greater stability and improved steering precision for tight jobsite maneuvering.

Complete Machine Data.

Engine

Engine Type	4-cylinder turbo diesel engine with intercooler EPA Tier 4 Final / EU Stage 5
Engine Model	Deutz TCD3.6 L4
Engine Output (Power)	100 (74.4)/2,200 HP (kW)/rpm
Engine Displacement	220 (3,600) in³ (cm³)

Performance

Operating Weight (Cabin)	15,432 (7,000) lbs (kg)
Standard Bucket Capacity	1.57-2.35 (1.2-1.8) yd³ (m³)
Operating Load	4,188 (18.6) lbs (kN)
Tipping Load (Straight)	11,023 (49) lbs (kN)
Tipping Load (Articulated)	9,700 (43) lbs (kN)
Breakout Force	13,264 (59) lbs (N)
Traveling Speed (Standard)	11.8 (19) mph (km/h)
Traveling Speed (High)	22 (36) mph (km/h)

Hydraulics

Front Hydraulic PTO Pressure	3,626 (25,000) PSI (kPa)
Front Hydraulic PTO Flow	20 (78) GPM (L/min)
Transmission Type	Hydrostatic
Articulation Angle	±40°

Dimensions

Minimum Turning Radius	7'1" (2,155) ft-in (mm)
Dumping Clearance (F)	8'9" (2,680) ft-in (mm)
Transport Dimensions	17'11" x 6'11" x 9'1" (5,480 x 2,100 x 2,780) ft-in (mm)
