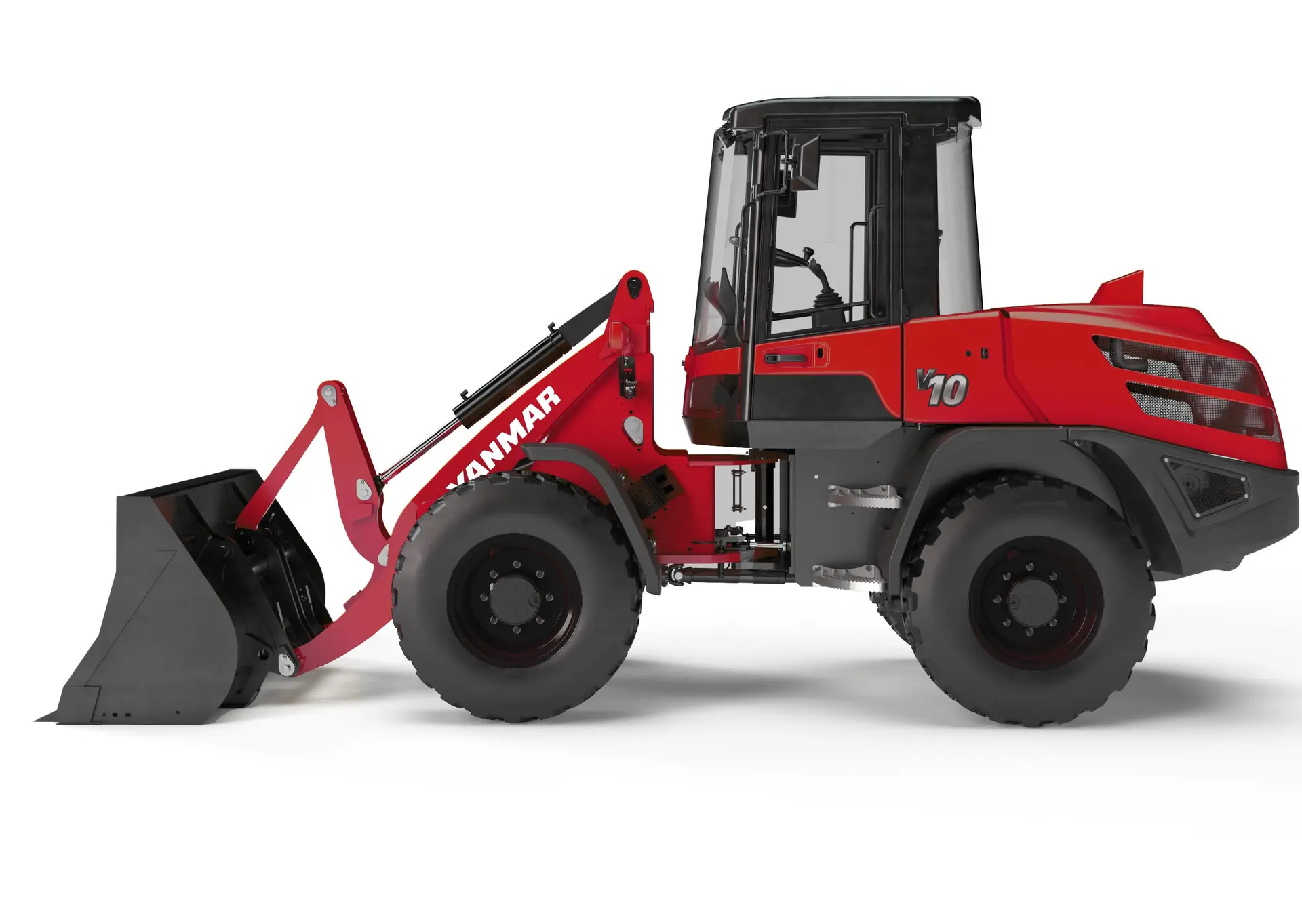

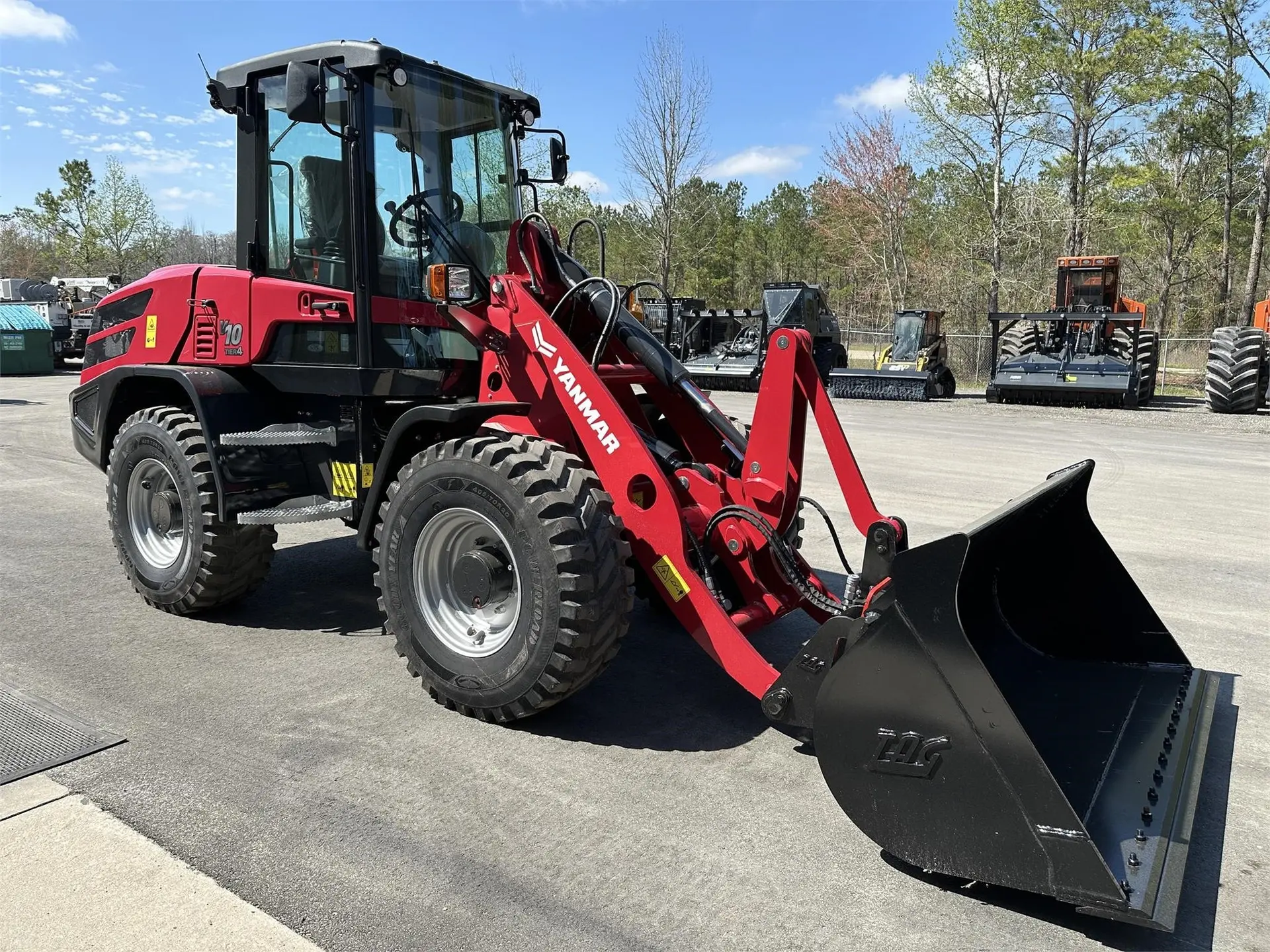

V10

Wheel Loader — 73 HP

Give your load a boost.

The big job capability of our V10 compact loader starts at the heart where you’ll find a turbo-charged, Tier 4 Final certified Yanmar diesel engine. The compact design features sophisticated electronics for optimum control and performance, bolstered by legendary dependability and extended service times.

Operating Weight

12,787 lbs

Horsepower

73 HP

Bucket Capacity

1.31–1.96 yd³

Tipping Load

9,634 lbs

Max Travel Speed

12.4 mph

Breakout Force

12,375 lbs

Product Capabilities

When every movement matters

Features of V10

Compact turbo performance

Turns out, you can have it all. Even our boosted diesel engines meet the clean, quiet, and fuel-efficient requirements of the Tier 4 Final certification, delivering 73HP with exceptional efficiency.

Intuitive pilot controls

Easy to learn and easy to master, joystick pilot controls give you smooth precision with quick pattern change capabilities to adapt to different operators.

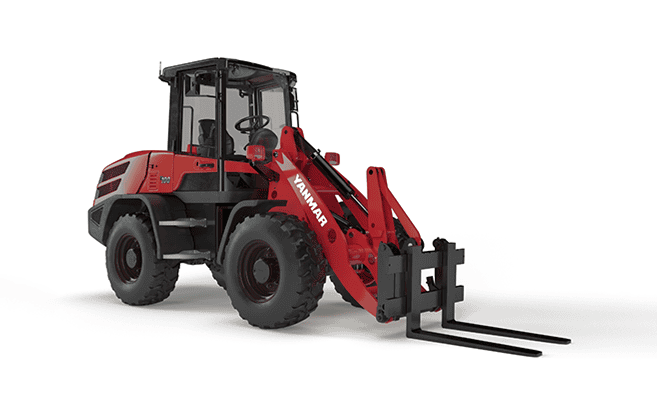

Multiple attachments

Choose and quickly swap from several available specialty buckets, grapples and fork attachments giving your wheel loader even greater jobsite versatility.

Dynamic braking

Thanks to a true hydrostatic drive design, you'll also reap the added benefits of smooth dynamic braking and reduce brake pad wear for lower operating costs.

Stability over uneven ground

Rear axle oscillation delivers a smooth ride over uneven terrain and keeps all four wheels on the ground, so you don't lose traction or excess material from the bucket.

Single-pin articulation

With 40-degrees of articulation in each direction, the single pin design provides greater stability and improved steering precision for tight jobsite maneuvering.

Complete Machine Data.

Engine

Engine Type	Turbo diesel engine with intercooler, EPA Tier 4 Final / EU Stage 5
Engine Model	Yanmar 4TNV98CT
Engine Output (Power)	73 (54.4)/2,200 HP (kW)/rpm
Engine Displacement	195.28 (3,200) in³ (cm³)

Performance

Operating Weight (Cabin)	12,787 (5,800) lbs (kg)
Standard Bucket Capacity	1.31-1.96 (1.0-1.5) yd³ (m³)
Operating Load	5,291 (23.5) lbs (kN)
Tipping Load (Straight)	9,634 (42.85) lbs (N)
Tipping Load (Articulated)	8,510 (37.85) lbs (kN)
Breakout Force	12,375 (55) lbs (kN)
Traveling Speed (Standard)	12.4 (20) mph (km/h)
Traveling Speed (High)	22.4 (36) mph (km/h)

Hydraulics

Front Hydraulic PTO Pressure	3,626 (25,000) PSI (kPa)
Front Hydraulic PTO Flow	20.3 (77) GPM (L/min)
Transmission Type	Hydrostatic
Articulation Angle	40°

Dimensions

Oscillation Angle	±10°
Minimum Turning Radius	7'1" (2,155) ft-in (mm)
Dumping Clearance (F)	8'8" (2,642) ft-in (mm)
Transport Dimensions	17'3" x 6'5" x 9'1" (5,270 x 1,950 x 2,765) ft-in (mm)
