Download Brochure

Buy 18 ton

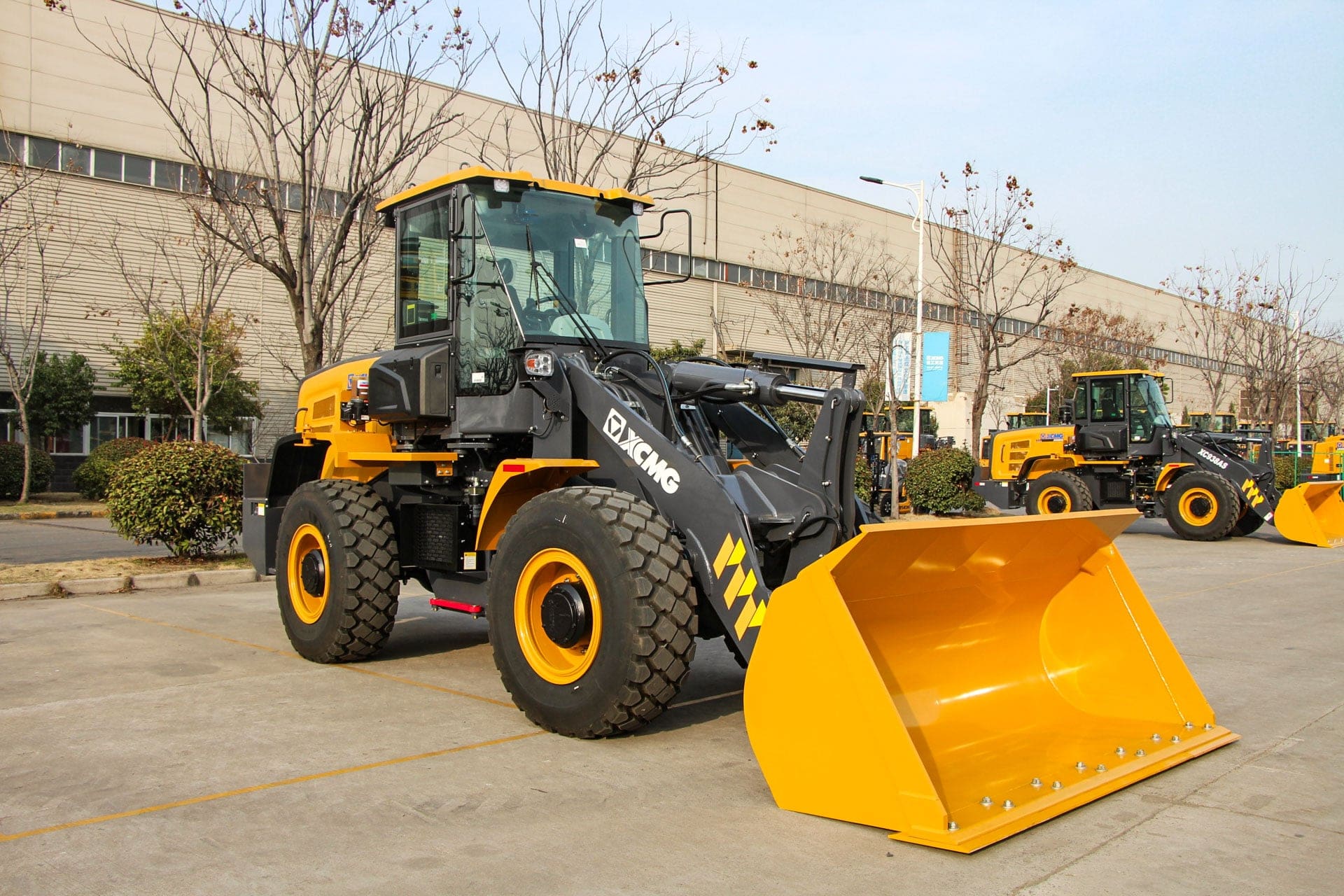

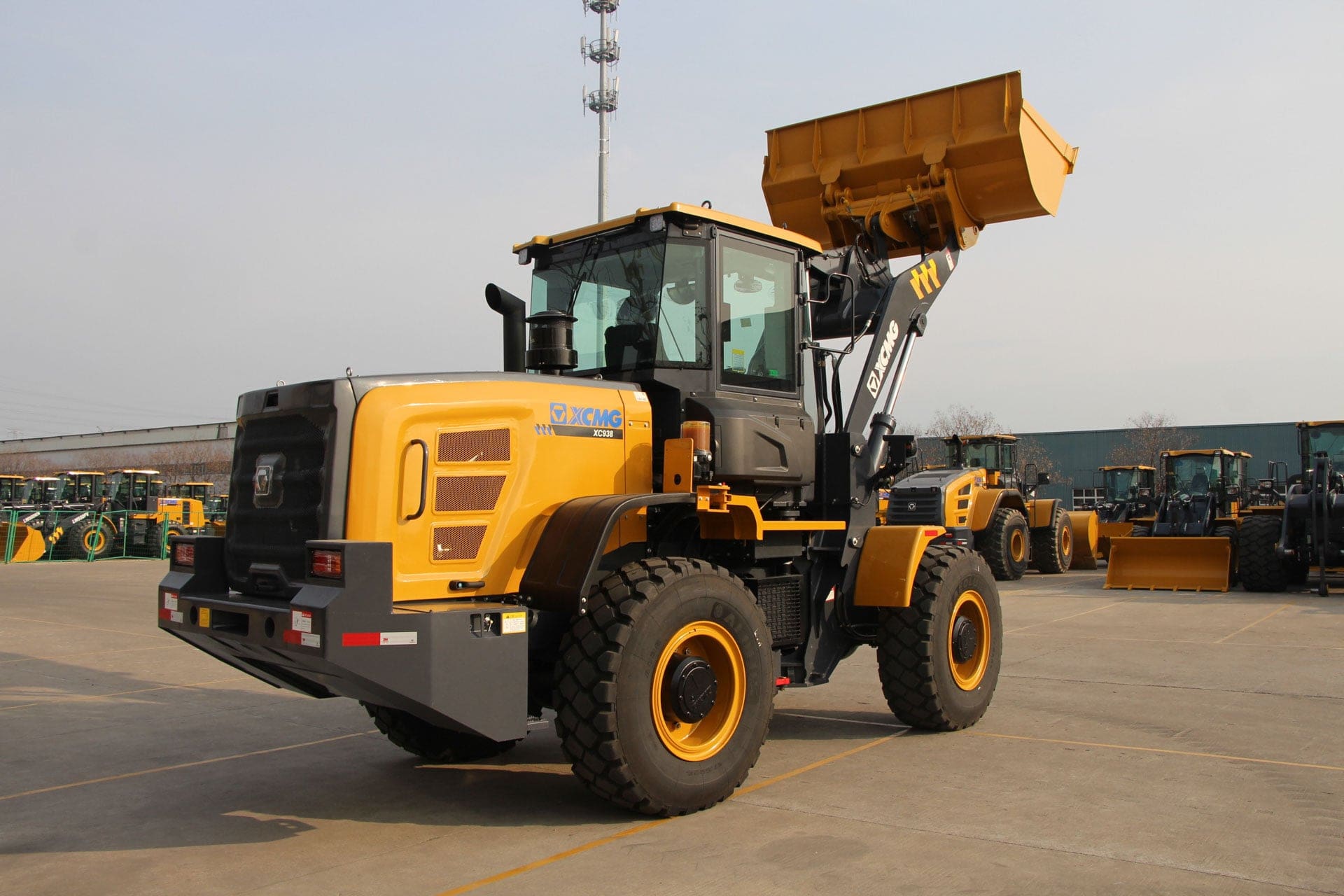

XCMG Wheel Loader

Equipment For Sale, Wheel Loaders

XCMG

XC938U

XCMG XC9 Series Wheel Loader — 133 hp / 29,762 lb operating weight

“Move mountains, one bucket at a time.”

The XCMG XC938U Wheel Loader is built for tough construction, mining, and material handling tasks. Powered by a 99 kW/133HP Cummins B6.7 engine, it meets Tier IV Final standards for efficiency. The advanced hydraulic system and ZF transmission deliver smooth control, while the ROPS/FOPS cab, heated seat, and air conditioning ensure operator comfort. With a 3.1 cubic yard bucket and an operating weight of 29,762 lbs, it’s designed for peak productivity.

Financing options at 0% interest available.

This 14.8 ton wheel loader is for sale with flexible monthly payments.

Call us now to book your 1-week demo.

Engine Power

133 hp

Operating Weight

29,762 lb

Bucket Capacity

2.49 yd³

Engine Type

Cummins B6.7 T4F

Max Travel Speed

24.8 mph

Fuel Tank Capacity

58 gal

Product Capabilities

Built to Load, Engineered to Last.

Financing options at 0% interest available.

This 14.8 ton wheel loader is for sale with flexible monthly payments.

Call us now to book your 1-week demo.

Features of XC938U

Cummins Powerplant

Powered by a Cummins Tier 4 Final / EU Stage V diesel engine, delivering exceptional torque and fuel efficiency for heavy load cycles.

Load-Sensing Hydraulics

The intelligent load-sensing hydraulic system automatically matches flow to demand, cutting fuel burn and extending component life.

Panoramic Operator Cab

Slightly-pressurized low-noise cab with ergonomic controls, high-visibility glazing, and a full-adjust suspension seat for all-day comfort.

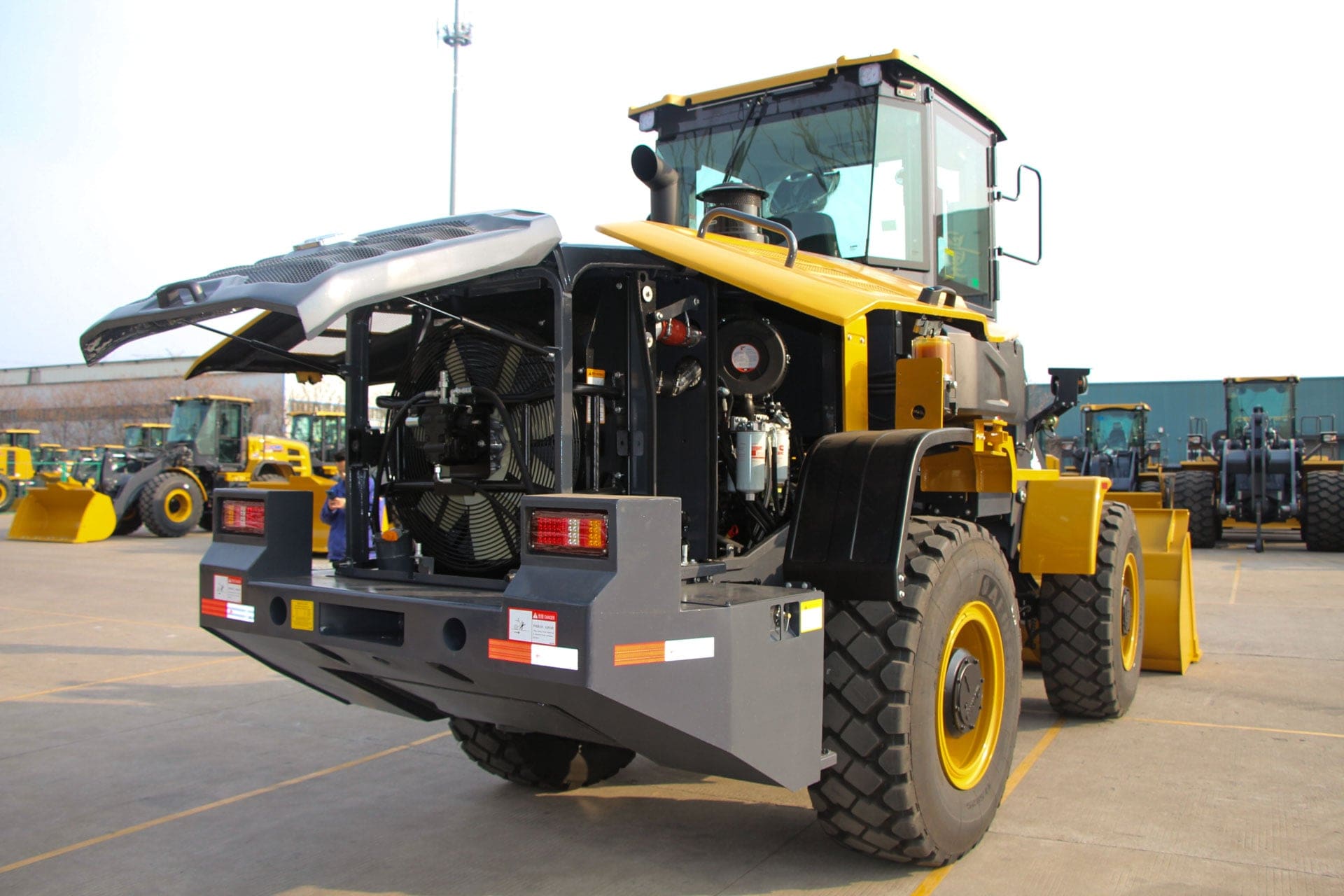

One-Stop Maintenance

Full-tilting cab and large-angle backward-opening hood centralize oil drainage and daily service points for fast maintenance.

Heavy-Duty Z-Bar Linkage

Cast-steel Z-bar loader linkage delivers superior breakout force and parallel bucket movement, keeping loads level from ground to full lift height.

Advanced Diagnostics & Telematics

On-board diagnostics with optional telematics track fuel burn, cycle times, and maintenance intervals so fleet managers can maximize uptime.

Complete Machine Data.

Specifications

Engine Power	133 hp
Operating Weight	29,762 lb
Bucket Capacity	2.49 yd³

Engine & Performance

Engine Type	Cummins B6.7 T4F
Max Travel Speed	24.8 mph
Fuel Tank Capacity	58 gal

Loading Performance

Max Dumping Height	9 ft 6 in
Dump Reach at Max Height	3 ft 8 in
Bucket Breakout Force	25,183 lbf
Cycle Time (Raise/Dump/Lower)	5.4 / 1.3 / 3.2 sec
Rated Load	6,614 lb

Dimensions

Overall Length (Bucket on Ground)	24 ft 3 in
Overall Width (over Tires)	8 ft 2 in
Overall Height (to Cab Roof)	10 ft 5 in
Wheelbase	9 ft 4 in
Ground Clearance	15.7 in
