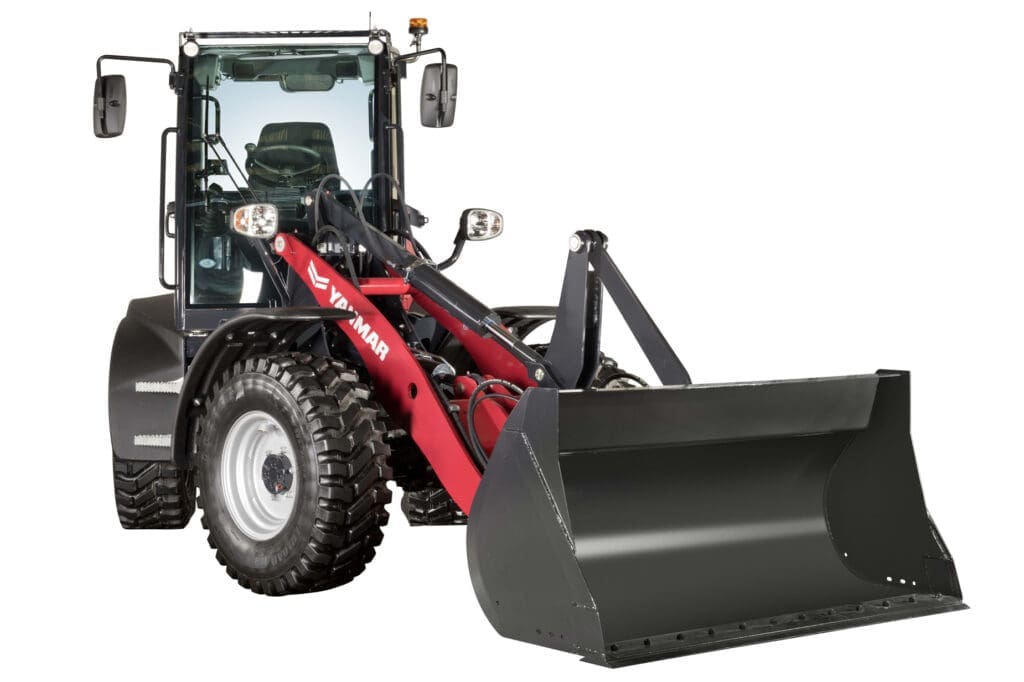

V7

Wheel Loader — 47.6 HP

Incredible stability to keep the load moving.

The Yanmar V7 compact wheel loader packs a punch for its size with 47.6 horsepower and incredible stability. Rear axle oscillation delivers a smooth ride over uneven terrain while the vertical lift path provides maximum reach height. Optional high-speed mode of 18.6 mph means you’re always moving material quickly and efficiently.

Operating Weight

9,370 lbs

Horsepower

47.6 HP

Bucket Capacity

0.92 yd³

Tipping Load

6,636 lbs

Max Travel Speed

12.4 mph

Breakout Force

9,217 lbs

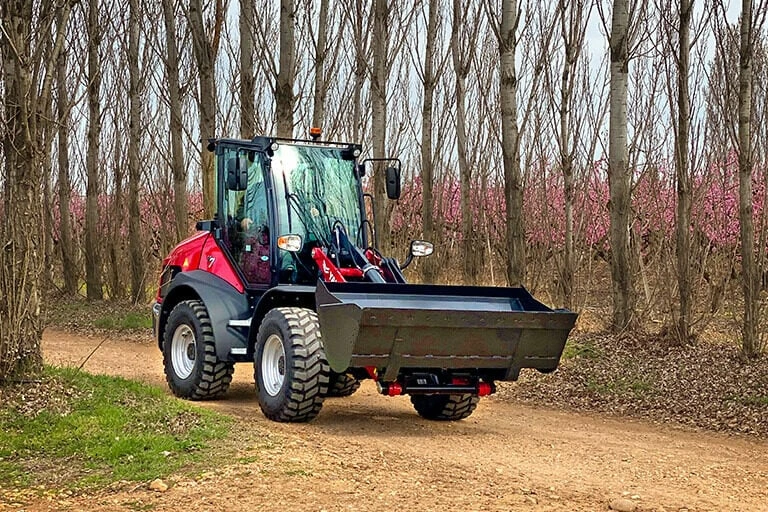

Product Capabilities

Vertical lift performance

Features of V7

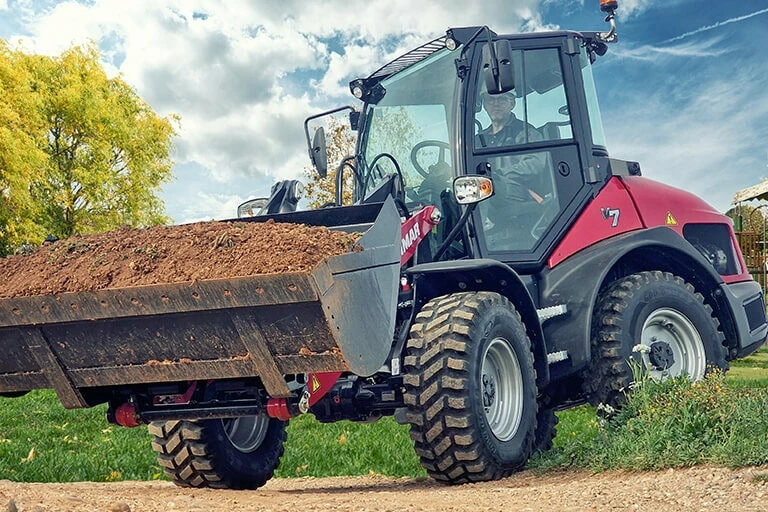

Powerful vertical lift

The V7's vertical lift path combined with 47.6HP Tier 4 Final Yanmar diesel delivers maximum reach height and impressive breakout force, making it ideal for loading trucks and hoppers efficiently.

Smooth hydrostatic drive

The full hydrostatic transmission provides infinitely variable speed control in both forward and reverse. An optional high-speed mode of 18.6 mph maximizes productivity when traveling between tasks.

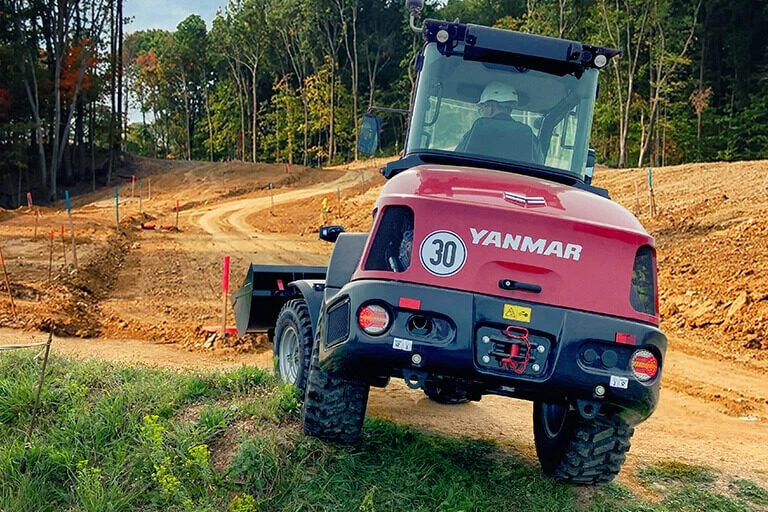

Stability over any terrain

Rear axle oscillation delivers a smooth ride over uneven terrain and keeps all four wheels on the ground, preventing traction loss and reducing material spill even with a fully loaded bucket.

Comfortable and safe

Certified ROPS protection keeps operators safe while an ergonomic operator station with optional cab enclosure, heat, and air conditioning ensures all-day comfort in any weather.

Standard auxiliary hydraulics

Power attachments with ease using standard auxiliary hydraulic connections and adjustable proportional flow control for precise and efficient material handling.

Easy maintenance access

Swing-out engine hood and ground-level service points make routine maintenance quick and straightforward, reducing downtime and keeping you on the job.

Complete Machine Data.

Engine

Engine Type	Water-cooled 4-cylinder diesel
Engine Model	Yanmar 4TNV86CT
Engine Output (Power)	47.6 (35.5)/2,400 HP (kW)/rpm
Engine Displacement	127.6 (2,091) in³ (cm³)

Performance

Operating Weight (Canopy)	9,370 (4,250) lbs (kg)
Operating Weight (Cabin)	9,370 (4,250) lbs (kg)
Standard Bucket Capacity	0.92 (0.7) yd³ (m³)
Operating Load	2,778 (12.36) lbs (kN)
Tipping Load (Straight)	6,636 (30) lbs (kN)
Tipping Load (Articulated)	5,864 (26) lbs (kN)
Breakout Force	9,217 (41) lbs (kN)
Max Traveling Speed (Standard)	12.4 (20) mph (km/h)
Max Traveling Speed (High)	18.6 (30) mph (km/h)
