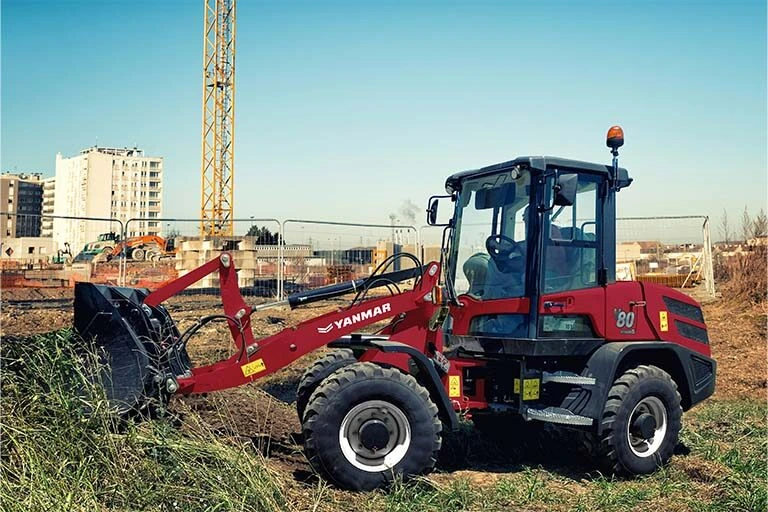

V8

Wheel Loader — 62 HP

Redefine every load.

Step up to a new generation of compact wheel loader with the smooth hydrostatic drive and high-lifting capabilities of the Yanmar V8. You’ll find power at every turn thanks to the Tier 4 Final diesel engine and its stout 62-horsepower ensuring powerful hydraulics are always on tap to make quick work of materials.

Operating Weight

10,802 lbs

Horsepower

62 HP

Bucket Capacity

1.05–1.57 yd³

Tipping Load

8,311 lbs

Max Travel Speed

12.4 mph

Breakout Force

10,328 lbs

Product Capabilities

Spend more time moving

Features of V8

Intuitive pilot controls

Easy to learn and easy to master, joystick pilot controls give you smooth precision with quick pattern change capabilities to adapt to different operators.

More performance, less fuel

The intercooled four-cylinder diesel packs more than a punch. Tier 4 Final certification also means it's quiet, clean, and incredibly fuel efficient.

Safe, quiet and comfortable

Keep operators happy and safe with a ROPS certified and rubber isolated cab featuring a hydraulic suspended seat and integrated lumbar supports.

Multiple attachments

Choose and quickly swap from several available specialty buckets, grapples and fork attachments giving your wheel loader even greater jobsite versatility.

Standard auxiliary hydraulics

Power additional accessories with auxiliary hydraulic connections and set the perfect flow with standard adjustable proportional control.

Minimize downtime

Following in the Yanmar tradition, extended maintenance intervals and ease of serviceability is at the forefront of the V8's modern design.

Complete Machine Data.

Engine

Engine Type	Diesel engine with intercooler, EPA Tier 4 Final / EU Stage 5
Engine Model	Yanmar 4TNV98C
Engine Output (Power)	62 (46.2)/2,200 HP (kW)/rpm
Engine Displacement	201.4 (3,300) in³ (cm³)

Performance

Operating Weight (Cabin)	10,802 (4,900) lbs (kg)
Standard Bucket Capacity	1.05-1.57 (0.8-1.2) yd³ (m³)
Operating Load	5,512 (24.5) lbs (kN)
Tipping Load (Straight)	8,311 (36.97) lbs (N)
Tipping Load (Articulated)	7,341 (32.66) lbs (kN)
Breakout Force	10,328 (45.9) lbs (kN)
Traveling Speed (Standard)	12.4 (20) mph (km/h)
Traveling Speed (High)	22.4 (36) mph (km/h)

Hydraulics

Front Hydraulic PTO Pressure	3,634 (17.24) PSI (kPa)
Front Hydraulic PTO Flow	17 (65) GPM (L/min)
Transmission Type	Hydrostatic
Articulation Angle	40°

Dimensions

Oscillation Angle	±10°
Min Turning Radius (Inside Tires)	6'6" (1,981) ft-in (mm)
Dumping Clearance (F)	8'4" (2,550) ft-in (mm)
Transport Dimensions	16'6" x 6'1" x 8'9" (5,060 x 1,850 x 2,640) ft-in (mm)
