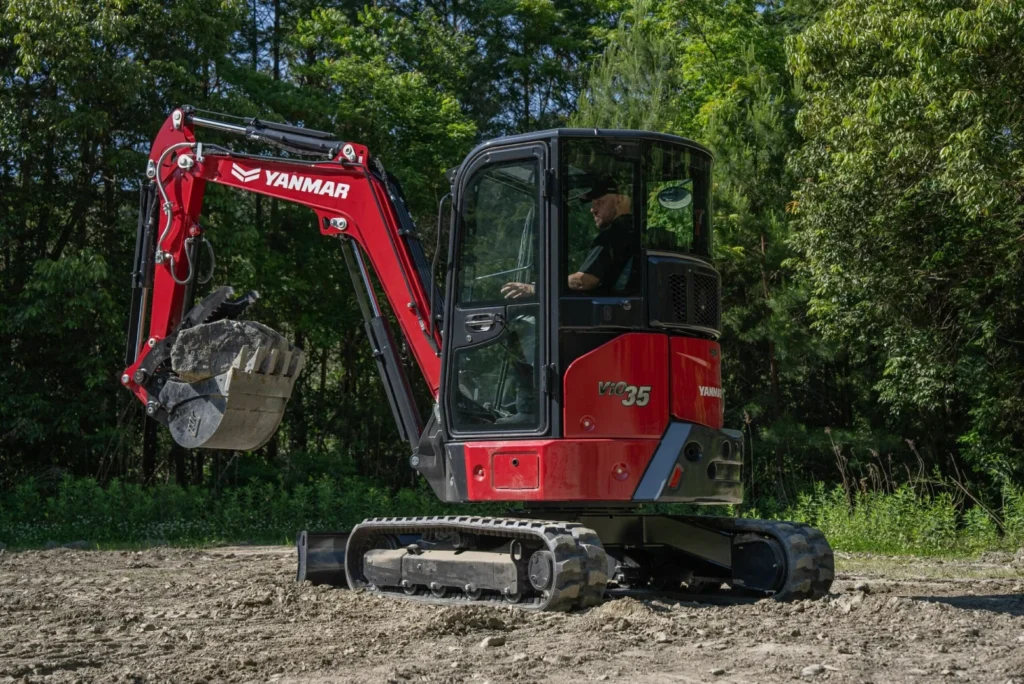

ViO35-7

Mini Excavator — 3.5 ton class

Power-Packed Versatility.

Achieve high power in a compact size with the 24.4-horsepower Yanmar ViO35-7. Powered by a Tier 4 Final engine and a three-pump hydraulic system, this 3.5-ton workhorse offers industry-leading multi-function performance with 360-degree visibility and ergonomic controls.

Operating Weight

7,540 lbs

Max Dig Depth

11'3"

Fuel Tank Capacity

11.6 Gals

Horsepower

24.4 HP

Blade Width

5'8"

Travel Speed

3.0 MPH

Product Capabilities

Configurable to match your work

Features of ViO35-7

Powerfully efficient

The ViO35-7's 24.4-horsepower Yanmar diesel engine paired with an efficient and powerful three-pump flow sharing hydraulic system provides industry-leading multi-function performance. The machine's ECO mode takes efficiency a step further by reducing fuel consumption.

True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

Convenience-boosting technology

Advanced SmartAssist Remote telematics saves you time and money with real-time remote data analytics, geo-fencing, optimized preventative service scheduling and more. Plus, the ViO35-7's 4.3-inch color display puts a variety of options and information at your fingertips.

Built for tough jobs

Yanmar designed the ViO35-7 with a robust build and guarding in every possible location. That includes a highly durable undercarriage, cylinder guards, hose guards, strategic placement of the boom light, and more.

Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

Convenient hydraulics

Conveniently adjust your auxiliary hydraulic performance to your intended application with the AUX flow rate control and five customizable attachment settings integrated into the display.

Complete Machine Data.

Engine

Engine Type	Vertical 3-cylinder water-cooled direct injection diesel engine
Engine Model	3TNV88F-ESBV4
Engine Output (Power)	24.4 (18.2)/2,200 HP (kW)/rpm
Fuel Tank Capacity	11.6 (44) Gals (L)

Performance

Operating Weight (Canopy / Rubber Track)	7,540 (3.37) lbs (t)
Operating Weight (Cabin / Rubber Track)	7,882 (3.58) lbs (t)
Max Dig Depth	11'3" (3,430 mm)
Max Digging Force, Bucket	5,485 (24.4) lbs (kN)
Max Digging Force, Arm	4,159 (18.5) lbs (kN)
Traveling Speed, High/Low	3.0 (4.8) / 1.8 (2.9) MPH (km/h)
Swing Speed	9.4 RPM
Boom Swing Angle (L/R)	71° / 52°
Ground Contact Pressure (Rubber Track)	4.44 (30.6) / 4.64 (32.0) PSI (kPa)

Hydraulics

Hydraulic Pump Capacity (Variable)	9.9 (37.4) x 2 GPM (L/min)
Hydraulic Pump Capacity (Gear)	7.1 (26.8) x 1, 2.6 (9.9) x 1 GPM (L/min)
Hydraulic Main Relief Pressure	3,205 (22.1) x 2, 2,988 (20.6) x 1 PSI (MPa)

Dimensions

Blade Width (U or V)	5'9" (1,740 mm) ft-in (mm)
Overall Length (D)	17'9" (5,430) ft-in (mm)
Overall Width (U or V)	5'9" (1,740) ft-in (mm)
Overall Height (S)	8'0" (2,460) ft-in (mm)
Wheelbase (E)	7'1" (2,160) ft-in (mm)
