V4-7

Wheel Loader — 39 HP

Never met a challenge it couldn’t handle.

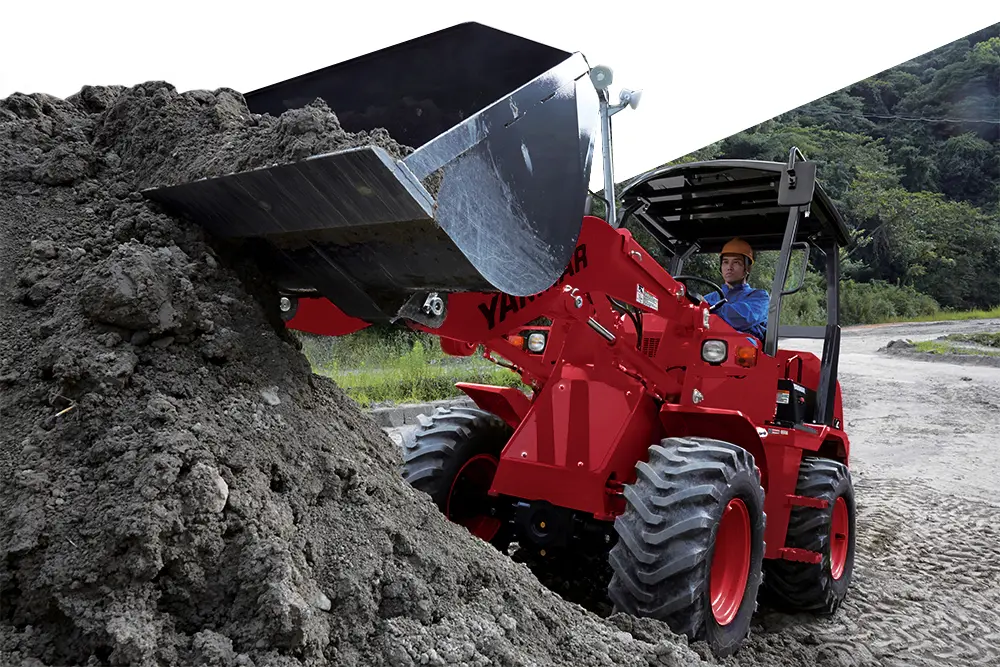

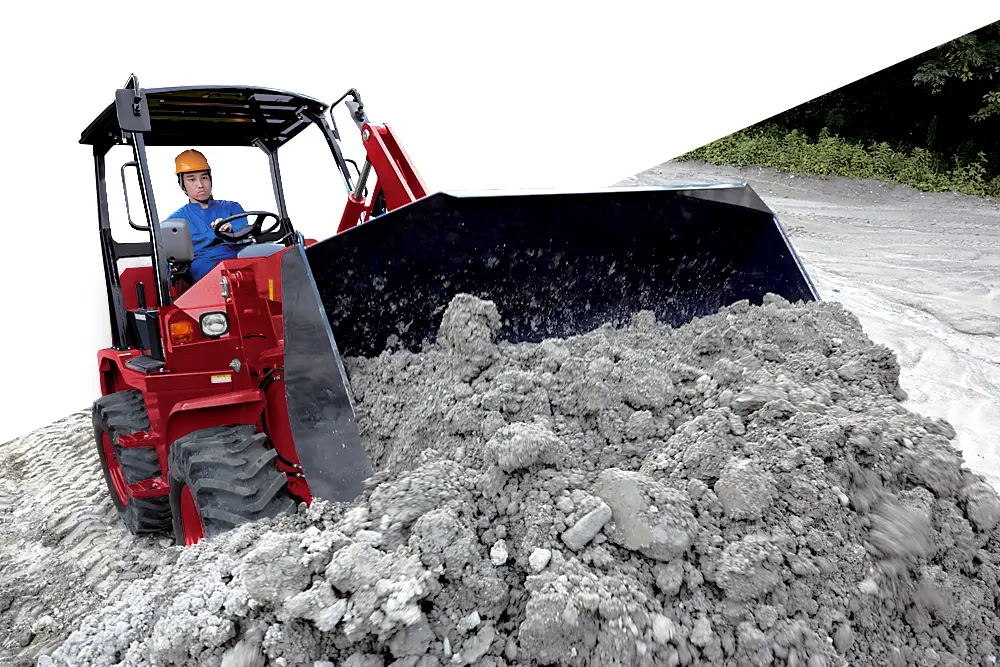

Our most compact articulating wheel loader might be small in size, but it’s big on capability. Whether you’re moving rocks, dirt, mulch, manure, salt, fertilizer, or any other material, our legendary Yanmar diesel performance makes quick work of any task. Rear axle oscillation allows you to cover uneven terrain with greater stability, resulting in less spill.

Operating Weight

8,422 lbs

Horsepower

39 HP

Bucket Capacity

0.65 yd³

Tipping Load

6,070 lbs

Max Travel Speed

11.8 mph

Breakout Force

6,085 lbs

Product Capabilities

Smooth uneven terrain

Features of V4-7

Performance to move more

The four-cylinder Tier 4 Final Yanmar diesel makes quick work of the biggest jobs with a nearly unstoppable 39HP and the added fuel-efficiency of ECO mode.

Fingertip control

Nothing is ever out of reach with the intuitive design of the operator's station where you'll find the loader joystick, two-speed selector and the controls for auto and fixed-speed modes.

Safe and comfortable

Keep operators safe with certified ROPS protection. And keep them comfortable no matter the season with optional cab enclosure with heat and air-conditioning.

Comfort from start to finish

A wide entrance makes for easy ingress and egress, and a reclining, full-suspension seat soaks up uneven terrain for comfort that never tires.

Standard auxiliary hydraulics

Power additional accessories with auxiliary hydraulic connections and set the perfect flow with standard adjustable proportional control.

Fixed travel speed

Working smart and safe is the rule of every jobsite and a fixed travel speed mode employs additional safety when working in restricted areas.

Complete Machine Data.

Engine

Engine Type	Water-cooled 4-cylinder diesel
Engine Model	4TNV88C-NKAH
Engine Output (Power)	39 (29.1)/2,500 HP (kW)/rpm
Engine Displacement	133.6 (2,189) in³ (cm³)

Performance

Operating Weight (Cabin)	8,422 (3,820) lbs (kg)
Operating Weight (Canopy)	7,848 (3,560) lbs (kg)
Standard Bucket Capacity	0.65 (0.5) yd³ (m³)
Operating Load	2,535 (11.2) lbs (kN)
Tipping Load (Straight)	6,070 (27) lbs (kN)
Tipping Load (Full Turn)	5,058 (22.5) lbs (kN)
Breakout Force	6,085 (27.1) lbs (kN)
Max Traveling Speed	11.8 (19.0) mph (km/h)

Hydraulics

Front Hydraulic PTO Pressure	3,000 (20,590) PSI (kPa)
Front Hydraulic PTO Flow	14.8 (56.0) GPM (L/min)
Transmission Type	Automatic Hydrostatic
Drive Type	4-Wheel Drive

Dimensions

Steering Type	Center-Pivot Frame Articulation w/Full Hyd. Power
Articulation Angle	40.5°
Minimum Turning Radius	12'6" (3,810) ft-in (mm)
Dumping Clearance (F)	7'11" (2,420) ft-in (mm)
Transport Dimensions	14'6" x 5'7" x 8'5" (4,425 x 1,690 x 2,555) ft-in (mm)
