Toro Dingo TX 1000 TURBO Limited Edition Track Loader, Wide

1,000 lb Turbo Diesel Limited Edition, Wide Track

“The bar. Raised.”

The Toro Dingo TX 1000 TURBO Limited Edition is the pinnacle of compact utility loader performance, delivering a first-in-class 1,000 lb rated operating capacity with a turbocharged 24.7 HP Yanmar engine. Wide MERT tracks with turf-friendly tread handle any terrain while the patented control system ensures precise, confident operation.

Operating Weight

2,911 lb

Operating Capacity

1,000 lb

Engine Horsepower

24.7 HP

Max Ground Speed

4.1 mph

Track Width

9.1 in

Hinge Pin Height

81 in

Product Capabilities

The Pioneer. Now Evolved.

Features of Toro Dingo TX 1000 TURBO Limited Edition Track Loader, Wide

Dual Independent Hydrostatic Drive

Independent hydrostatic motors drive each track separately, enabling smooth zero-radius turns, feathered speed control on slopes, and precise positioning through the tightest jobsite conditions — all from the walk-behind operator platform.

Universal Skid Steer Attachment Interface

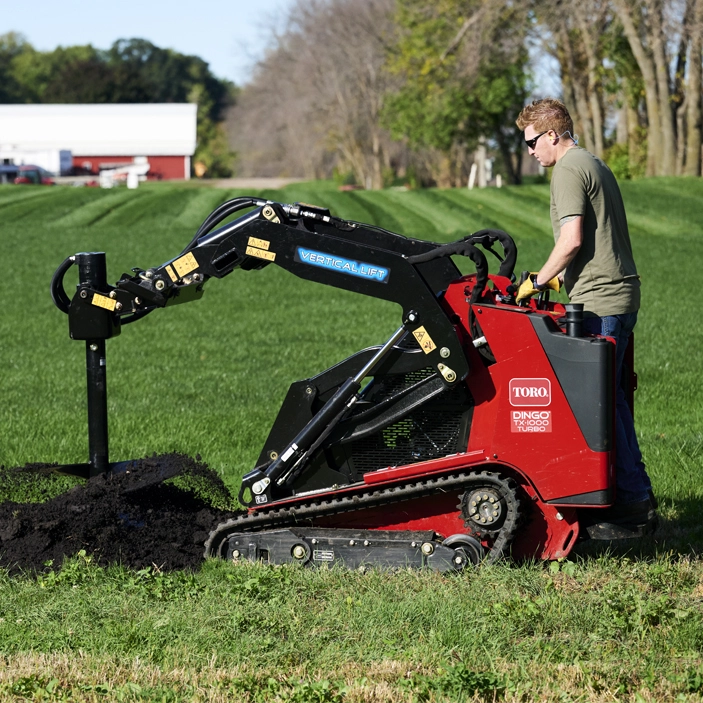

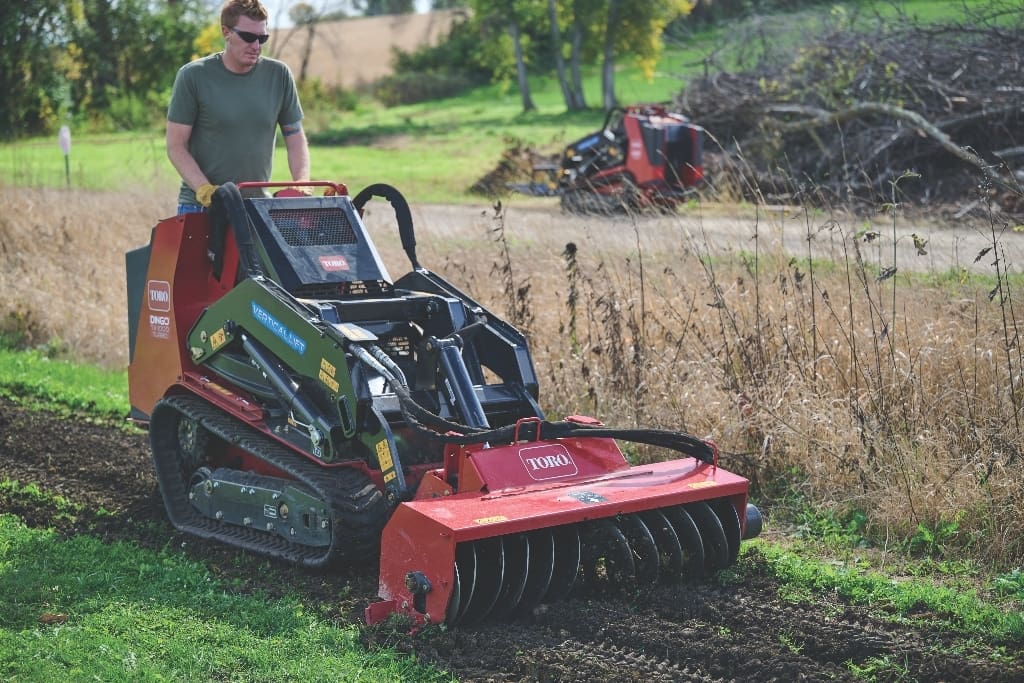

The standard skid steer quick-attach system accepts hundreds of Toro and compatible aftermarket attachments — augers, trenchers, buckets, grapples, pallet forks, stump grinders, and more — turning the Dingo into a true multi-function machine for any application.

MERT Track with Turf-Friendly Tread

MERT (Maximum Extra Rubber Track) technology provides a larger rubber contact area for reduced ground pressure and excellent flotation on soft, wet, and turf surfaces. Turf-style tread patterns on wide-track models minimize surface disruption on finished lawns and commercial landscapes.

Compact Access Through 36-Inch Gates

With narrow-track models as slim as 34 inches wide, the Dingo TX passes through standard 36-inch residential gate openings, between fences, along building foundations, and inside structures inaccessible to conventional compact track loaders and skid steers.

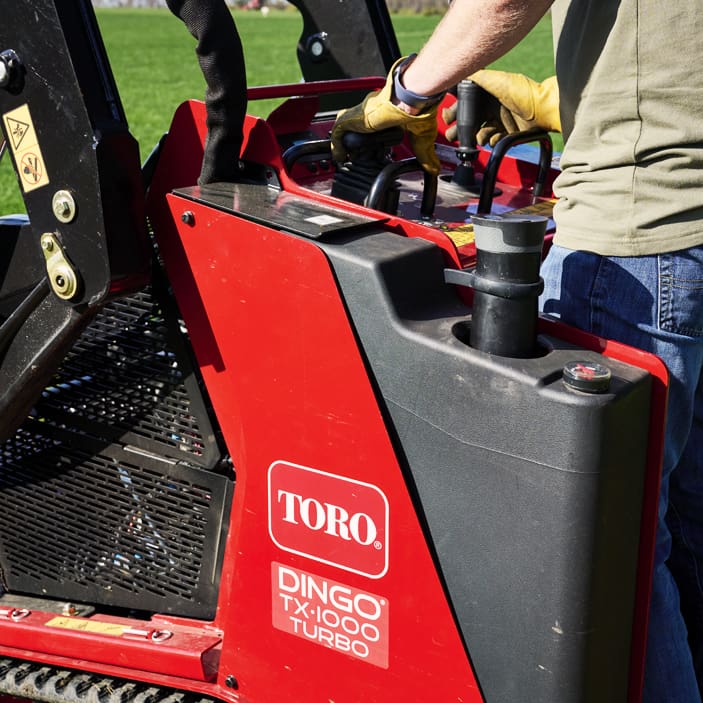

Toro Patented Control System

Toro's patented proportional control system puts precise drive and loader functions at the operator's fingertips from the walk-behind platform, enabling accurate, smooth operation with minimal training — whether feathering into attachment work or navigating complex site obstacles.

4-Pump Independent Hydraulic System

Four independent hydraulic pumps deliver simultaneous optimized flow to both traction circuits, the loader arm, and the auxiliary circuit — ensuring full loader arm response and attachment performance are always available without sacrificing drive capability under heavy loads.

Complete Machine Data.

Performance

Operating Weight	2,911 lb (1,320 kg)
Rated Operating Capacity	1,000 lb (454 kg)
Ground Pressure	4.1 PSI
Ground Speed – Forward	Up to 4.1 mph (6.5 km/h)
Ground Speed – Reverse	Up to 4.1 mph (6.5 km/h)
Traction	Dual Hydrostatic Pump
Hydraulic Pressure	3,000 PSI
Reservoir Capacity	8.6 gal (32.5 L)

Engine & Hydraulics

Engine Make	Yanmar
Engine Model	3TNV80FT Turbo Diesel
Engine Compliance	Tier 4 & EU Stage 5
Engine Horsepower	24.7 HP (18.4 kW)
Fuel Type	Diesel
Fuel Tank Capacity	10.25 gal (38.8 L)
Oil Capacity	3.8 qt (3.6 L)
Air Filter	Remote: Primary and Safety Elements
Cooling System	Combo Crossflow Radiator and Oil Cooler
Hydraulic Flow – Traction	3–12.9 LPM

Dimensions

Tracks	MERT Track with Turf Friendly Tread
Track Width	9.1 in (23.1 cm)
Wheelbase	39 in (99.0 cm)
Ground Clearance	5.9 in (14.9 cm)
Length (Without Bucket)	83 in (210.8 cm)
Length (With Bucket)	104 in (264.2 cm)
Width (Without Bucket)	39.9 in (101.3 cm)
Width (With Bucket)	42.2 in (107.2 cm)
Height	54.5 in (138.4 cm)
Hinge Pin Height	81 in (205.7 cm)
Max Operating Height	106.2 in (269.7 cm)
Reach – Fully Raised	23.3 in (59.2 cm)
Dump Height	60.3 in (153.2 cm)
