535 lb Gas Track Loader, Wide Track
“Gas power. Turf-friendly tracks.”

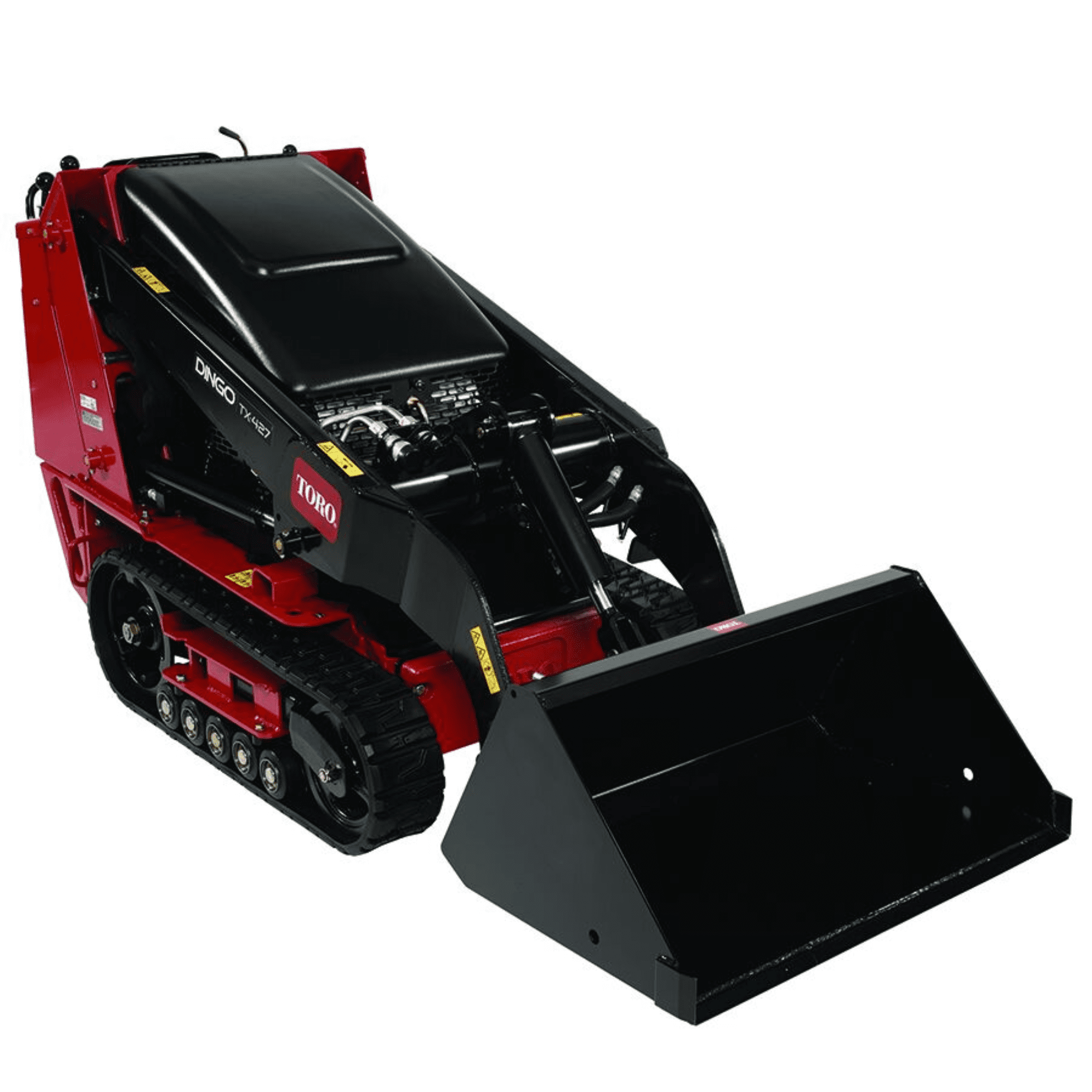

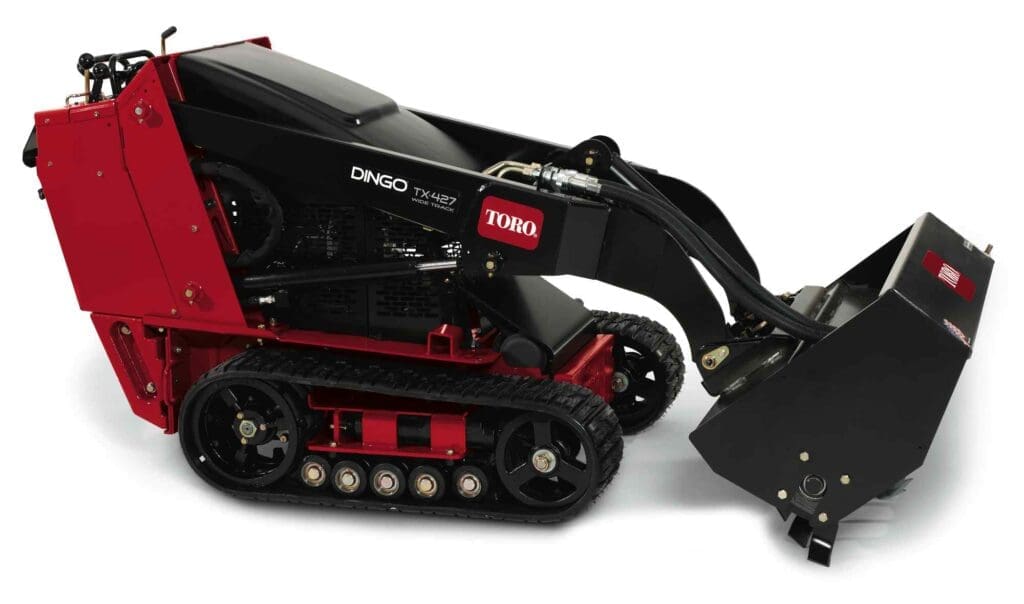

The Toro Dingo TX 427 Wide is a lightweight, turf-friendly compact loader with a 25 HP Kohler gasoline engine and wide tracks for lawn protection. Simple controls, a 4-pump hydraulic system, and 535 lb rated operating capacity make it the ideal wide-track gas-powered Dingo for small to moderate projects.

Operating Weight

Operating Weight

1,990 lb

Operating Capacity

Operating Capacity

535 lb

Engine Horsepower

Engine Horsepower

25 HP

Ground Speed (Fwd)

Ground Speed (Fwd)

4.5 mph

Tip Capacity

Tip Capacity

1,530 lb

Hinge Pin Height

Hinge Pin Height

65.8 in

Product Capabilities
Lightweight Wide-Track Gas Compact Loader

The Toro Dingo TX 427 Wide is a lightweight, turf-friendly compact loader with a 25 HP Kohler gasoline engine and wide tracks for lawn protection. Simple controls, a 4-pump hydraulic system, and 535 lb rated operating capacity make it the ideal wide-track gas-powered Dingo for small to moderate projects.

Features of Toro Dingo TX 427 Track Loader, Wide

01

Dual Independent Hydrostatic Drive

Independent hydrostatic motors drive each track separately, enabling smooth zero-radius turns, feathered speed control on slopes, and precise positioning through the tightest jobsite conditions — all from the walk-behind operator platform.

02

Universal Skid Steer Attachment Interface

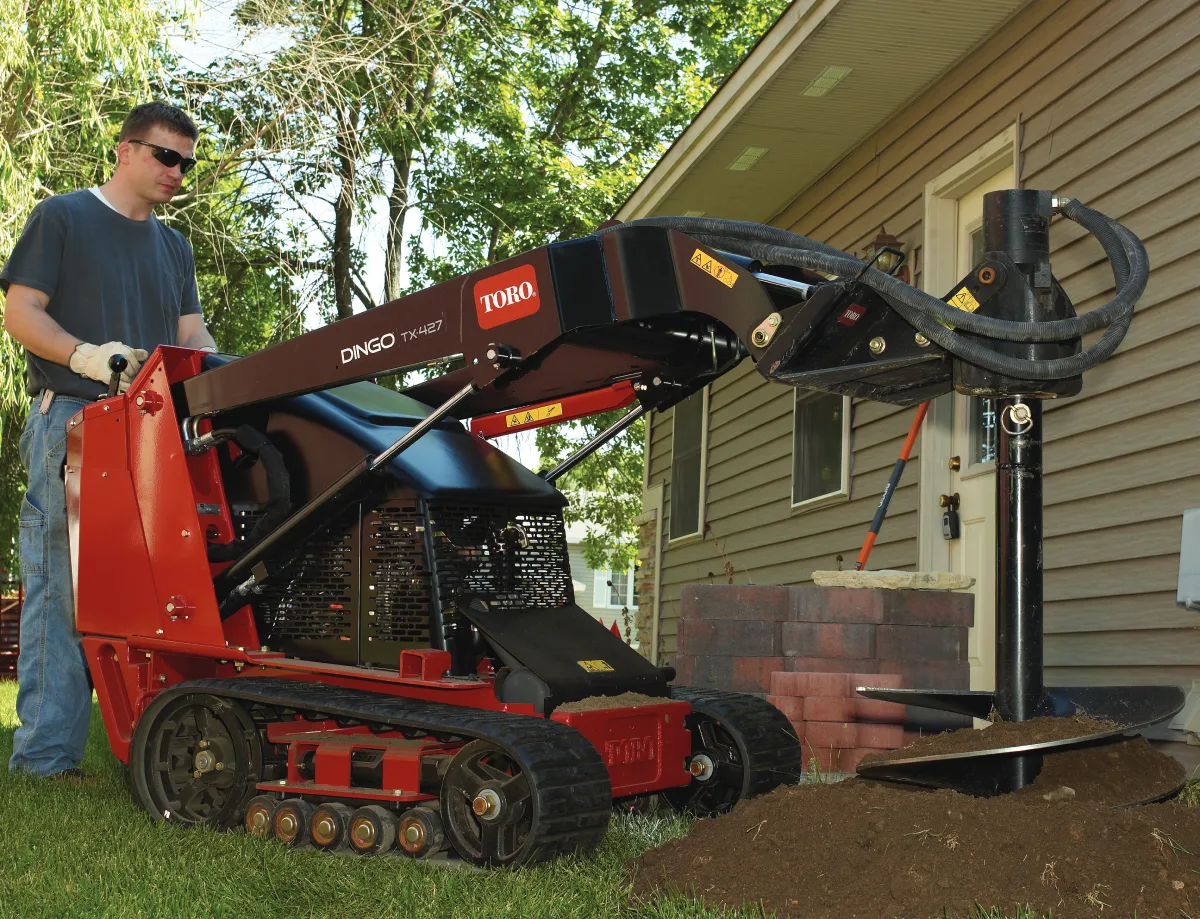

The standard skid steer quick-attach system accepts hundreds of Toro and compatible aftermarket attachments — augers, trenchers, buckets, grapples, pallet forks, stump grinders, and more — turning the Dingo into a true multi-function machine for any application.

03

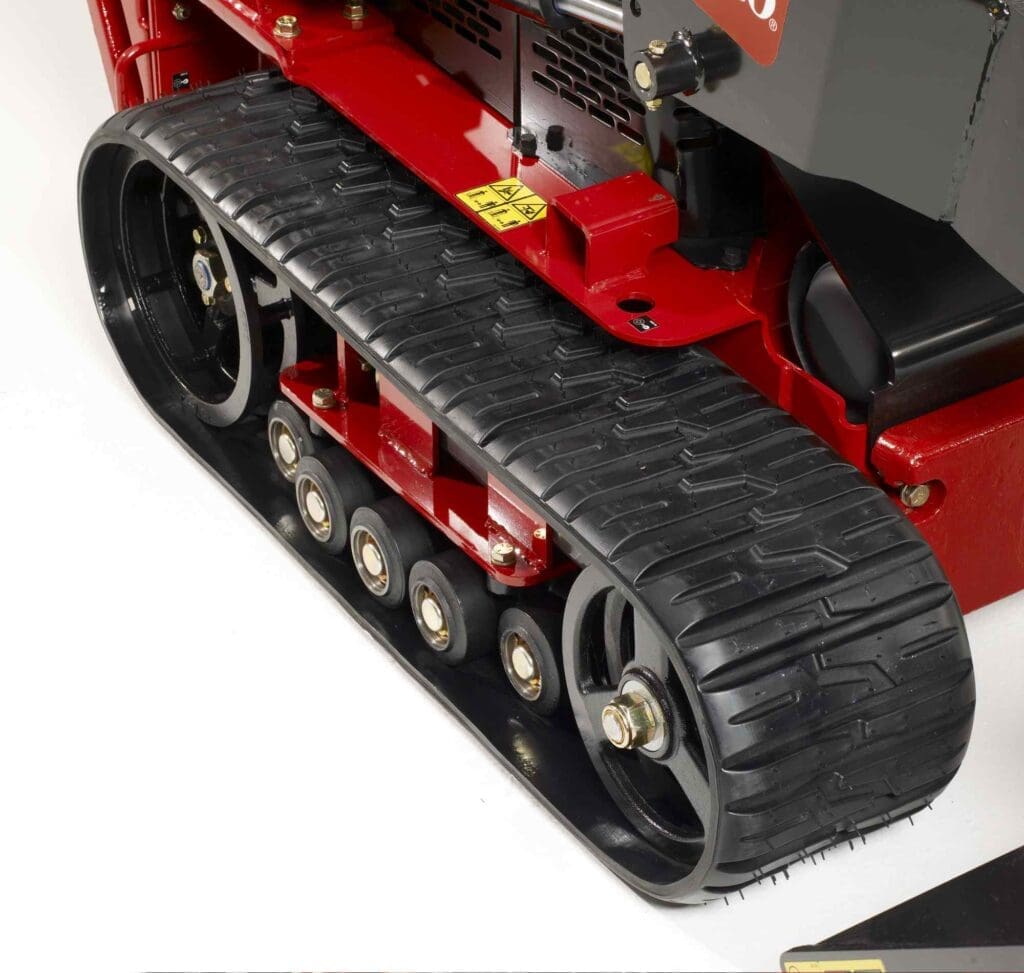

MERT Track with Turf-Friendly Tread

MERT (Maximum Extra Rubber Track) technology provides a larger rubber contact area for reduced ground pressure and excellent flotation on soft, wet, and turf surfaces. Turf-style tread patterns on wide-track models minimize surface disruption on finished lawns and commercial landscapes.

04

Compact Access Through 36-Inch Gates

With narrow-track models as slim as 34 inches wide, the Dingo TX passes through standard 36-inch residential gate openings, between fences, along building foundations, and inside structures inaccessible to conventional compact track loaders and skid steers.

05

Toro Patented Control System

Toro's patented proportional control system puts precise drive and loader functions at the operator's fingertips from the walk-behind platform, enabling accurate, smooth operation with minimal training — whether feathering into attachment work or navigating complex site obstacles.

06

4-Pump Independent Hydraulic System

Four independent hydraulic pumps deliver simultaneous optimized flow to both traction circuits, the loader arm, and the auxiliary circuit — ensuring full loader arm response and attachment performance are always available without sacrificing drive capability under heavy loads.

Complete Machine Data.

Performance
Operating Weight 1,990 lb (903 kg)
Rated Operating Capacity 535 lb (242.67 kg)
Tip Capacity 1,530 lb (694 kg)
Loader Arms Radial
Ground Pressure 3.5 PSI
Ground Speed – Forward Up to 4.5 mph (7.2 km/h)
Ground Speed – Reverse Up to 2.0 mph (3.2 km/h)
Traction Dual Hydrostatic Pump

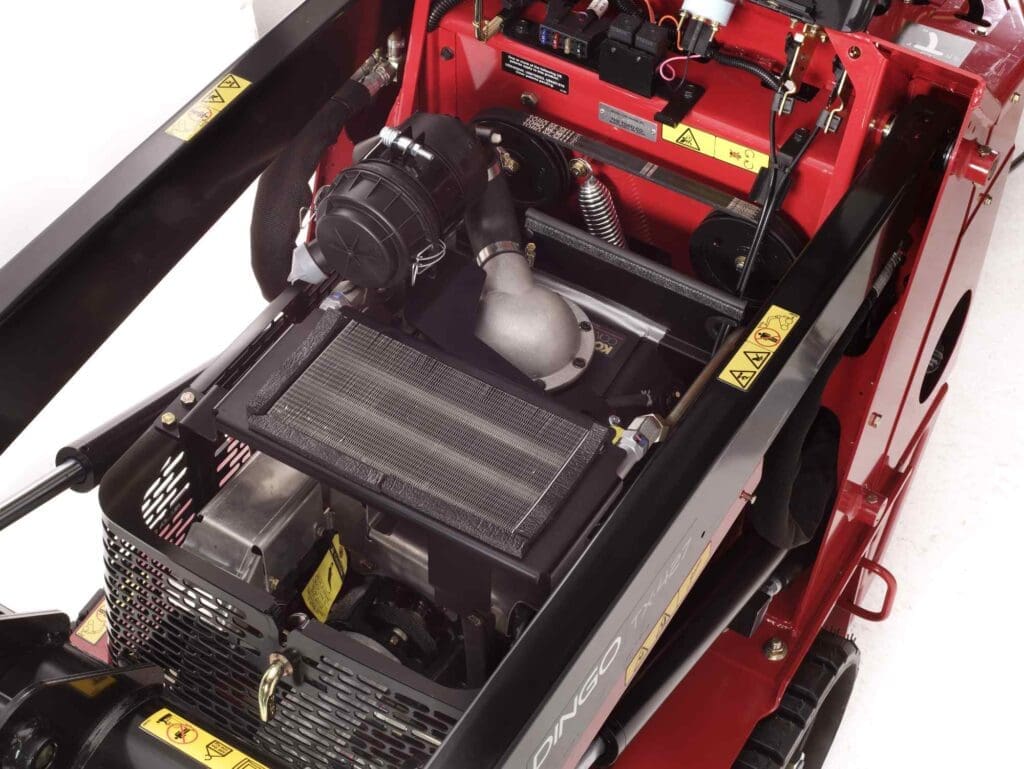

Engine & Hydraulics
Engine Make Kohler
Engine Model Command Pro Series CH740
Engine Horsepower 25 HP (18.6 kW) @ 3,600 rpm
Engine Displacement 725 cc (44 cu.in.)
Fuel Type Gasoline
Engine Cooling Air Cooled
Fuel Tank Capacity 6 gal (22.7 L)
Oil Capacity 2 qt (1.9 L)
Air Filter Two-stage, heavy-duty, remote
Hydraulic Flow – Auxiliary 11.4 GPM
Hydraulic Flow – Traction 16.9 GPM
Dimensions
Track Type Sprocket-drive, 10 road wheels per side
Track Width 9.5 in (24.1 cm)
Track Length 96.6 in (245.3 cm)
Wheelbase 31.2 in (79.2 cm)
Ground Clearance 4.6 in (11.56 cm)
Length (Without Bucket) 70.7 in (179.5 cm)
Length (With Bucket) 92 in (233.6 cm)
Width (Without/With Bucket) 41 in (104.1 cm)
Height 46.1 in (117.0 cm)
Hinge Pin Height 65.8 in (167.1 cm)
Max Operating Height 90.1 in (228.8 cm)
Reach – Fully Raised 21.8 in (55.3 cm)
Dump Height 46.1 in (117.0 cm)
