The Toro Dingo TXL 2000 is the first compact utility loader in North America to achieve 2,000 lb rated operating capacity. Its telescoping arms extend 44 inches over 10 feet high, ideal for loading trucks and dumpsters, powered by a 49.6 HP Kubota diesel in a 54-inch stand-on frame.
Operating Weight
6,690 lb
ROC (Retracted)
2,000 lb
ROC (Extended)
920 lb
Engine Horsepower
49.6 HP
Max Ground Speed
5.4 mph
Hinge Pin Height
98.6 in
The Toro Dingo TXL 2000 is the first compact utility loader in North America to achieve 2,000 lb rated operating capacity. Its telescoping arms extend 44 inches over 10 feet high, ideal for loading trucks and dumpsters, powered by a 49.6 HP Kubota diesel in a 54-inch stand-on frame.
01

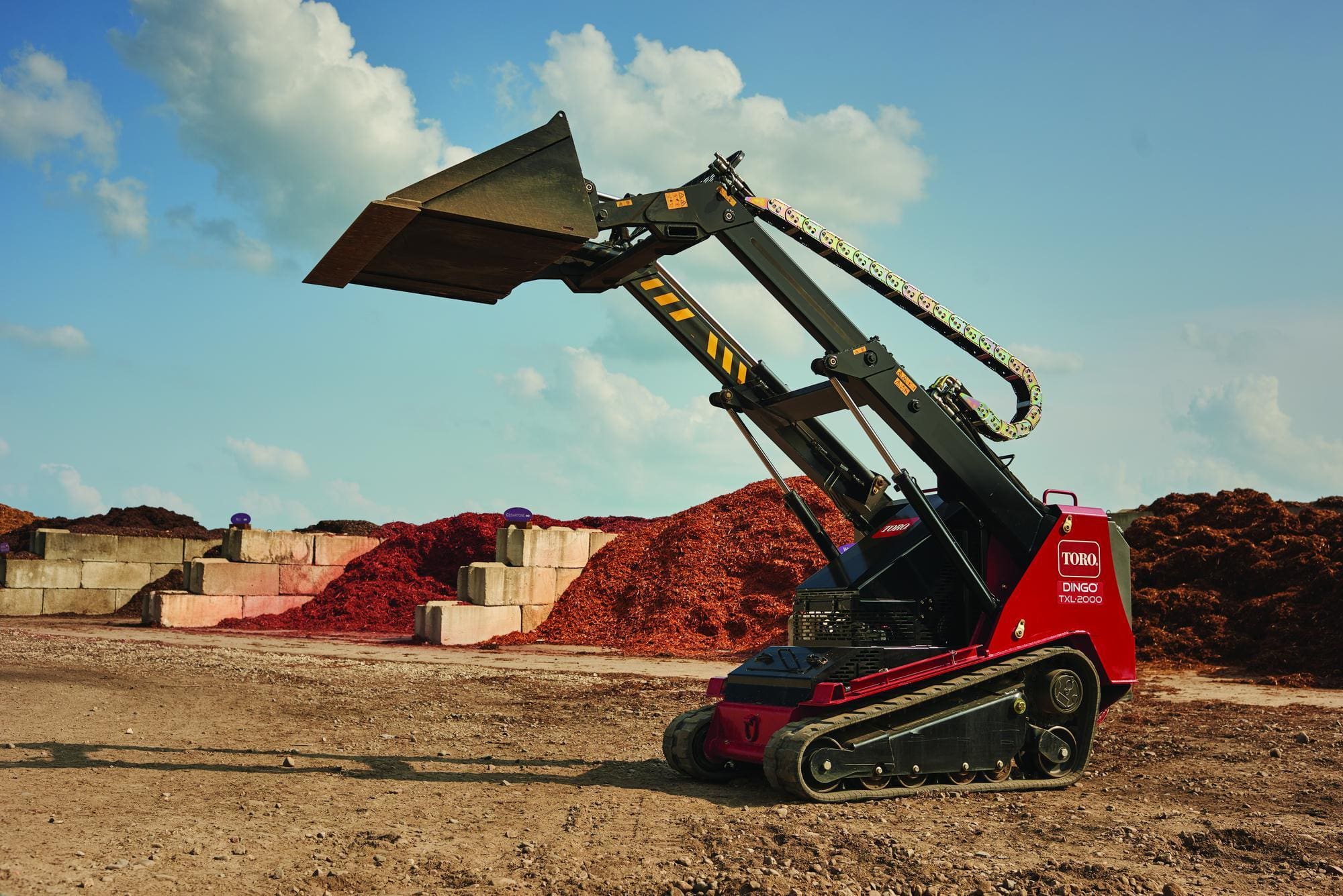

INTELESCOPE® Telescoping Boom Arm
Toro's exclusive telescoping arm extends over 44 inches beyond the standard position, allowing the TXL 2000 to reach over obstacles, into tall dumpsters and bins, and across barriers no fixed-arm compact loader can access — dramatically expanding the effective work envelope.
02
Industry-First 2,000 lb Rated Capacity
The first compact utility loader in North America to achieve a 2,000 lb retracted rated operating capacity, the TXL 2000 handles jobsite materials sized for machines significantly larger than its compact 54-inch frame width and stand-on footprint.
03

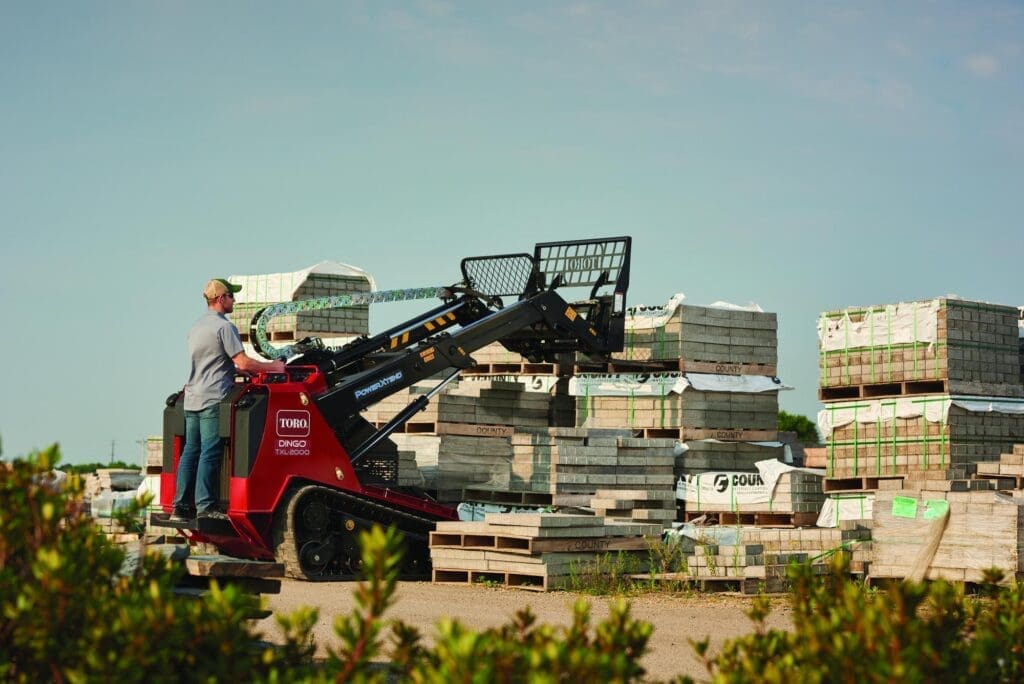

Stand-On Platform with 360° Visibility
The dedicated stand-on operator platform provides unobstructed 360-degree jobsite visibility without the restricted sightlines of a cab enclosure, allowing the operator to simultaneously monitor attachment work, load placement, and surrounding obstacles.
04
Full-Size Skid Steer Attachment System
The TXL 2000 accepts full-size skid steer attachments — not mini skid steer tools — expanding the available implement range to professional-grade rotary cutters, hydraulic breakers, heavy grading blades, and high-flow specialty attachments.
05
High-Pressure Hydraulic Circuit
A 4,350 PSI traction hydraulic pressure and 21.4 GPM auxiliary flow provide the hydraulic energy to operate demanding full-size attachments at rated performance, with traction circuit power to spare for the most intensive propulsion demands.
06
Kubota Diesel in a Compact Frame
A Kubota D1803 liquid-cooled diesel engine developing 49.6 HP powers the TXL 2000 through intensive daily cycles, while the 54-inch machine frame maintains access through sites and gate openings unavailable to conventional large skid steer loaders.
| Operating Weight | 6,690 lb (3,034.5 kg) |
| ROC – Retracted | 2,000 lb (907 kg) |
| ROC – Extended | 920 lb (417 kg) |
| Tip Capacity | 5,715 lb (2,592 kg) |
| Ground Speed – Fwd/Rev | Up to 5.4 mph (8.6 km/h) |
| Traction | Dual Hydrostatic Pump |
| Hydraulic Flow – Auxiliary | 21.4 GPM |
| Hydraulic Flow – Traction | 21.5 GPM (81.4 LPM) |
| Engine Make | Kubota |
| Engine Model | D1803 |
| Engine Horsepower | 49.6 HP (37 kW) |
| Engine Cooling | Liquid Cooled |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 18.3 gal (69.3 L) |
| Oil Capacity | 7.4 qt (7 L) |
| Air Filter | Two-stage, heavy-duty, remote |
| Hydraulic Pressure – Traction | 4,350 PSI |
| Reservoir Capacity | 15.25 gal (57.7 L) |
| Overall Width (Without/With Bucket) | 55 in (139.7 cm) |
| Track Width | 11.8 in (29.9 cm) |
| Hinge Pin Height – Retracted | 98.6 in (250.4 cm) |
| Hinge Pin Height – Extended | 123.4 in (313.4 cm) |
| Reach – Fully Raised | 45.2 in (114.8 cm) |
| Dump Height | 88.9 in (225.8 cm) |
