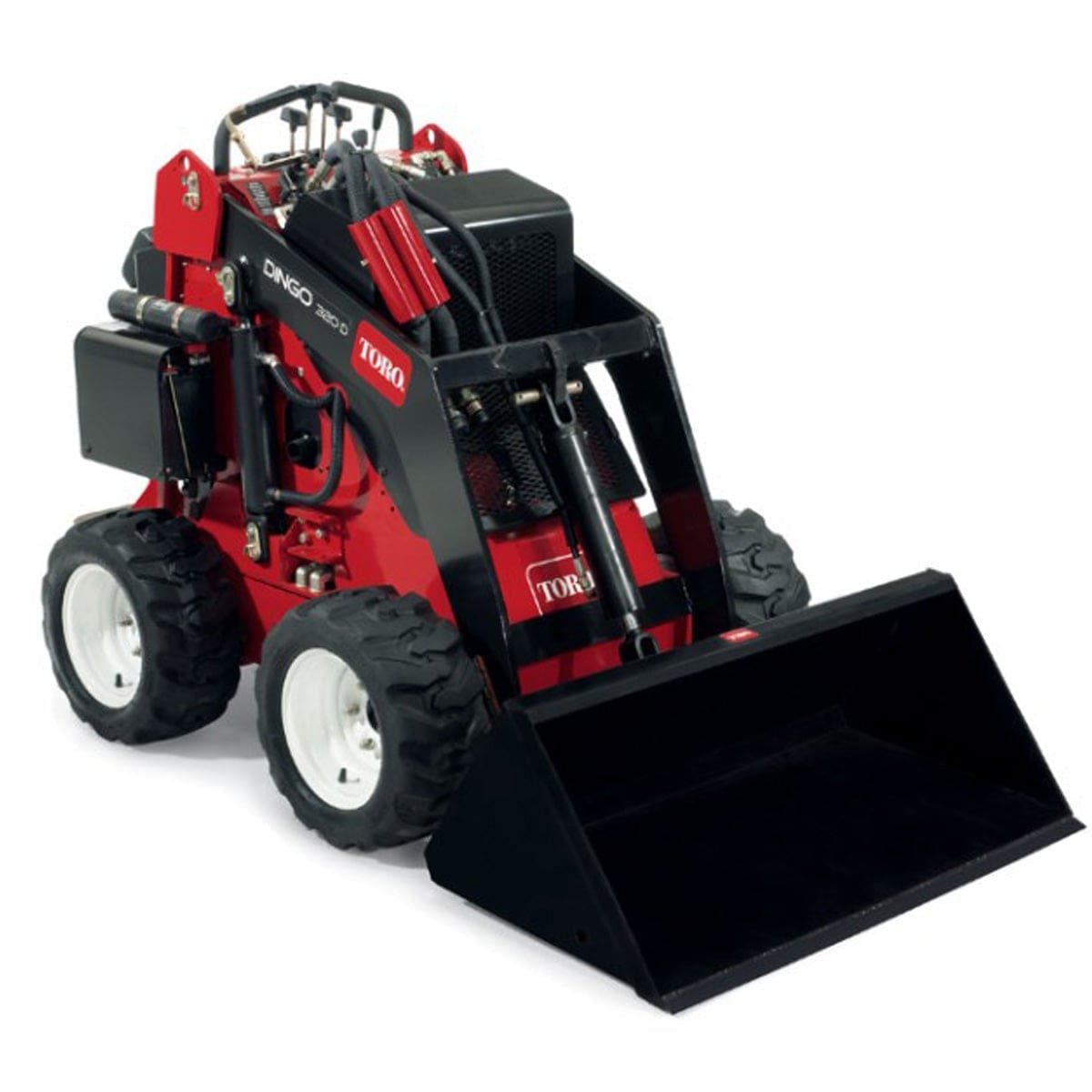

Toro Dingo 320-D Mini Skid Steer
Toro Dingo 320-D Mini Skid Steer
Toro Dingo 320-D Mini Skid Steer

Toro Dingo 320-D Mini Skid Steer

524 lb Diesel Mini Skid Steer
“Diesel efficiency. Wheeled agility.”

The Toro Dingo 320-D is a 524 lb diesel-powered mini skid steer with a liquid-cooled Kubota engine and dual hydrostatic wheel drive. Compact wheeled design, full skid steer attachment compatibility, and reliable diesel performance deliver all-day productivity for professional contractors.

Operating Weight

Operating Weight

1,722 lb

Operating Capacity

Operating Capacity

524 lb

Engine Horsepower

Engine Horsepower

25 HP

Max Ground Speed

Max Ground Speed

3.0 mph

Tip Capacity

Tip Capacity

1,048 lb

Hinge Pin Height

Hinge Pin Height

66 in

Product Capabilities
Diesel Workhorse in a Wheeled Dingo

The Toro Dingo 320-D is a 524 lb diesel-powered mini skid steer with a liquid-cooled Kubota engine and dual hydrostatic wheel drive. Compact wheeled design, full skid steer attachment compatibility, and reliable diesel performance deliver all-day productivity for professional contractors.

Features of Toro Dingo 320-D Mini Skid Steer

01

Dual Hydrostatic Wheel Drive

Independent hydrostatic motors drive each rear wheel separately, delivering smooth zero-radius turning and proportional variable-speed control from the walk-behind platform, enabling precise machine positioning without conventional steering wheels or levers.

02

Universal Attachment Compatibility

The standard skid steer quick-attach interface accepts hundreds of compatible Toro and aftermarket attachments, making the wheeled Dingo a versatile platform for landscaping, property maintenance, construction prep, and utility installation work.

03

Compact Wheeled Footprint

The narrow wheeled footprint passes through standard residential gate openings, navigates along building foundations, between fences and vehicles, and in confined spaces where even narrow-track compact loaders cannot maneuver effectively.

04

Toro's Intuitive Control System

Proportional drive and loader controls put precise machine command at the operator's fingertips from the walk-behind position, enabling accurate feathered control over movements and attachment operations with minimal training time for new operators.

05

Low Ground Pressure Tire Options

Wide pneumatic tires spread the operating weight over a large contact footprint, reducing ground pressure and minimizing surface damage on lawns, finished grades, and sensitive pavements compared to tracked or narrow-tire machine alternatives.

06

Ground-Level Daily Service Access

All daily service points — engine oil, fuel fill, hydraulic fluid, and air filter — are accessible from ground level without tools, enabling quick pre-shift checks and fluid top-offs that keep the machine ready with minimal maintenance time.

Complete Machine Data.

Performance
Operating Weight 1,722 lb (781 kg)
Rated Operating Capacity 524 lb (237.6 kg)
Tip Capacity 1,048 lb (475 kg)
Loader Arms Radial
Ground Speed – Fwd/Rev Up to 3.0 mph (4.8 km/h)
Hydraulic High Flow 10.8 GPM
Hydraulic Low Flow 4 GPM
Hydraulic Pressure 3,250 PSI
Engine & Hydraulics
Engine Make Kubota
Engine Model D722E3B
Engine Horsepower 25 HP (18.6 kW) @ 3,600 rpm
Engine Displacement 719 cc (43.88 cu.in.)
Engine Cooling Liquid Cooled
Fuel Type Diesel
Fuel Tank Capacity 4 gal (15.1 L)
Oil Capacity 3.4 qt (3.2 L)
Air Filter Two-stage, heavy-duty, remote
Reservoir Capacity 14.8 gal (56 L)
Dimensions
Wheelbase 28 in (71.1 cm)
Ground Clearance 5.8 in (14.7 cm)
Length (Without Bucket) 62 in (157.5 cm)
Length (With Bucket) 82.2 in (208.8 cm)
Width – Narrow Tires 35 in (88.9 cm)
Width – Standard Tires 40.5 in (102.8 cm)
Height 48.7 in (123.7 cm)
Hinge Pin Height 66 in (167.6 cm)
Max Operating Height 91.2 in (231.6 cm)
Reach – Fully Raised 28 in (71.1 cm)
Dump Height 47 in (119.3 cm)
Dump Angle 34°
