KIOTI K9 2440 UTV (4-Seat)

24HP KIOTI Diesel 4-Seat UTV — Extended Wheelbase

“Double the crew. Double the capability.”

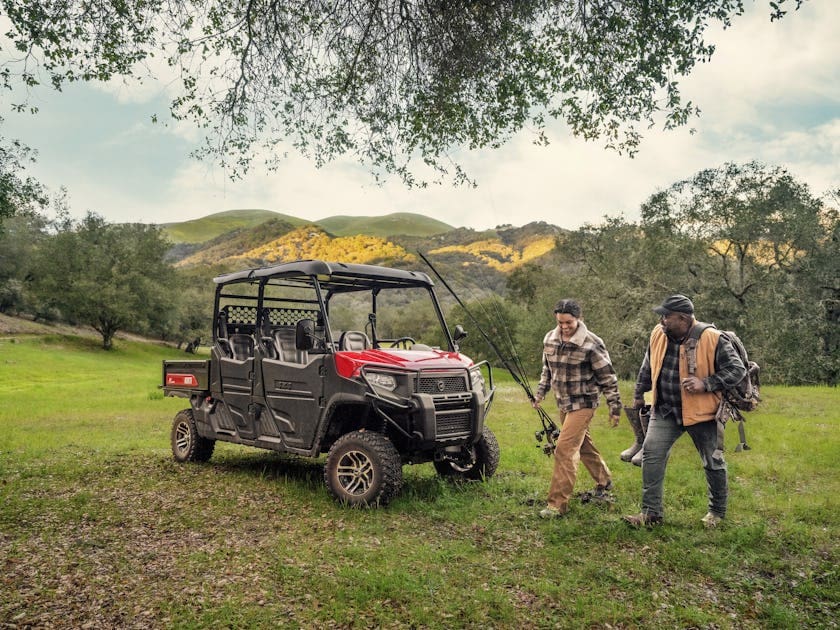

The KIOTI K9 2440 delivers 24 HP diesel power in a 4-seat 2-row configuration with 31 mph max speed, 1,750 lb payload, 1,300 lb towing, hydraulic power steering, and an extended 112.2-inch wheelbase for stable 4-passenger utility vehicle operation.

Engine Power

24 HP

Max Travel Speed

31 mph

Payload Capacity

1,750 lb

Towing Capacity

1,300 lb

Cargo Capacity

661 lb

Machine Weight

2,315 lb

Product Capabilities

Four-Seat Capability for the Whole Crew

Features of KIOTI K9 2440 UTV (4-Seat)

KIOTI-Built Diesel Engine

KIOTI's in-house built 3-cylinder water-cooled diesel engine combines the torque and fuel efficiency advantages of diesel power with the quality assurance of an entirely KIOTI-engineered and supported powertrain for years of reliable daily utility vehicle work.

Belt CVT with Four Operating Ranges

The Belt CVT with Low, High, Neutral, and Reverse ranges provides smooth, stepless power delivery across the K9's full 31 mph speed range, eliminating manual shifting and making the K9 easy to operate during tasks requiring constant speed changes.

Front and Rear Hydraulic Disc Brakes

Hydraulic disc brakes front and rear provide reliable, fade-resistant stopping power at all operating speeds and payload levels, ensuring safe controlled deceleration on grades, rough terrain, and when towing the K9's maximum rated loads.

Independent Double A-Arm Suspension

Front and rear independent double A-arm (wishbone-type) suspension absorbs terrain impacts and maintains tire contact with the ground for stable, controlled handling across uneven fields, trails, and worksites under all load configurations.

12-Inch Ground Clearance

Generous ground clearance of up to 12.5 inches provides the obstacle clearance needed for confident operation across rough agricultural terrain, drainage features, and field access tracks with full payload without risk of frame grounding.

Hydraulic Power Steering

Hydraulic power steering provides effortless directional control at all operating speeds, reducing operator fatigue during intensive daily work involving frequent turns, tight maneuvering in confined spaces, and low-speed precision positioning tasks.

Complete Machine Data.

Performance

Engine Power	24 HP (17.90 kW)
Max Travel Speed	31 mph (50 km/h)
Payload Capacity	1,750.50 lb (725 kg)
Towing Capacity	1,300 lb (590 kg)
Cargo Capacity	661.50 lb (300 kg)
Ground Clearance	12 in (304 mm)

Engine & Drivetrain

Engine Make	KIOTI
Engine Model	3C100LFU-U2
Engine Displacement	61.50 cu.in. (1,007 cc)
Fuel Type	Diesel
Drive Train	Belt CVT
Gear Ranges	Low, High, Neutral, Reverse

Dimensions

Overall Length	149.20 in (3,790 mm)
Width	62.60 in (1,590 mm)
Height	76.90 in (1,955 mm)
Wheelbase	112.20 in (2,850 mm)
Turning Radius	18.40 ft (5.60 m)
Cargo Bed	39.20 × 58.30 × 11.50 in (L×W×D)
