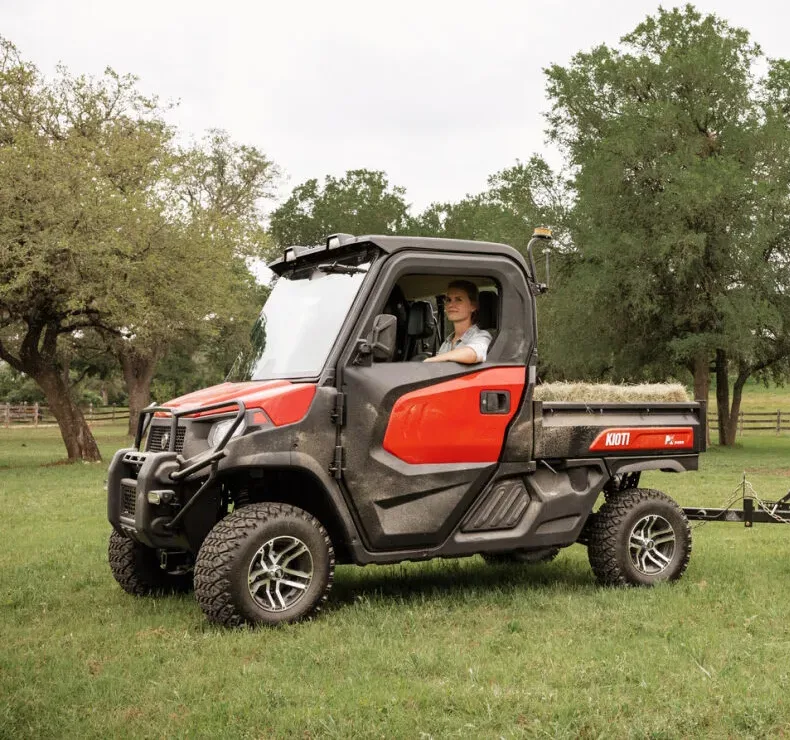

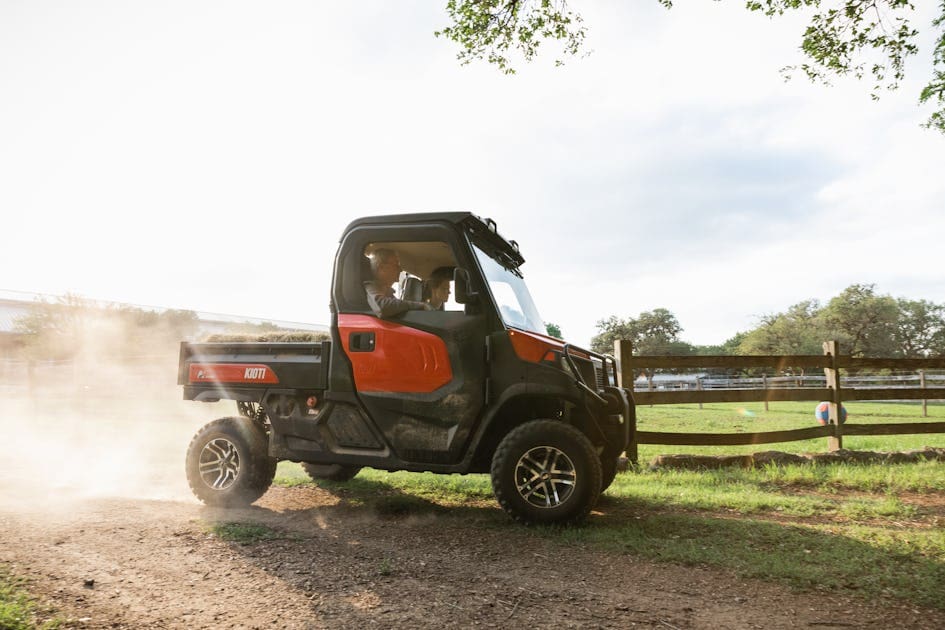

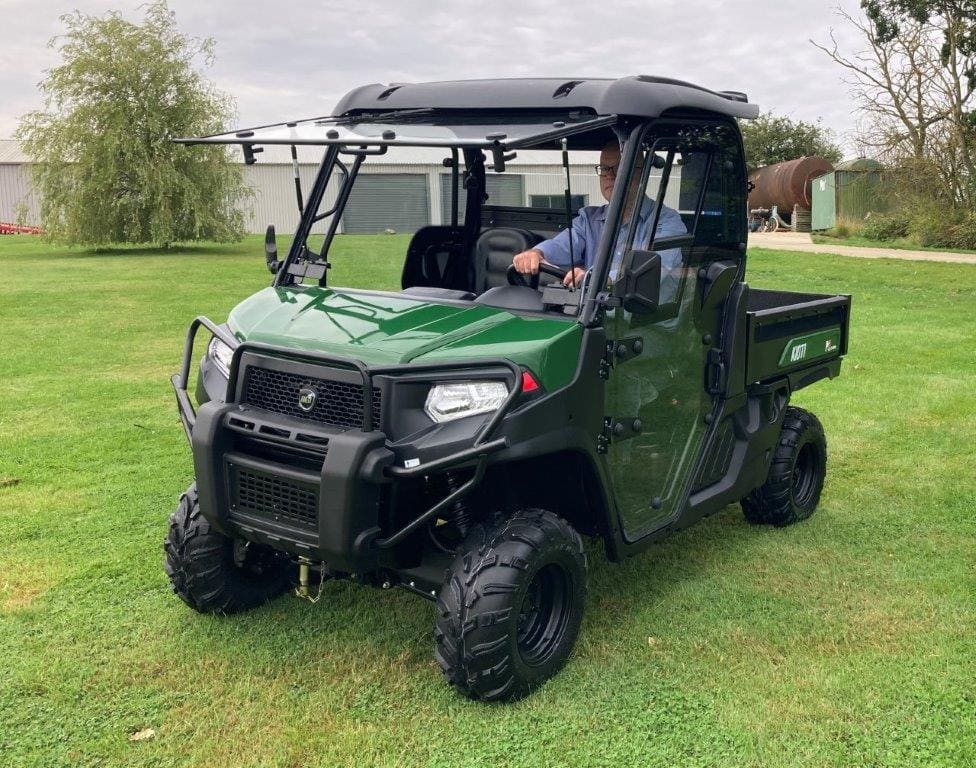

KIOTI K9 2400 Cab UTV

24HP KIOTI Diesel Cab UTV — All-Weather Factory Cab

“Any terrain. Any season.”

The KIOTI K9 2400 Cab delivers 24 HP diesel power with a factory-installed weatherproof cab for all-season operation, electronic steering, 31 mph speed, 1,750 lb payload, 1,300 lb towing, and front/rear hydraulic disc brakes.

Engine Power

24 HP

Max Travel Speed

31 mph

Payload Capacity

1,750 lb

Towing Capacity

1,300 lb

Cargo Capacity

1,102 lb

Machine Weight

2,215 lb

Product Capabilities

All-Weather Factory Cab for Year-Round Work

Features of KIOTI K9 2400 Cab UTV

KIOTI-Built Diesel Engine

KIOTI's in-house built 3-cylinder water-cooled diesel engine combines the torque and fuel efficiency advantages of diesel power with the quality assurance of an entirely KIOTI-engineered and supported powertrain for years of reliable daily utility vehicle work.

Belt CVT with Four Operating Ranges

The Belt CVT with Low, High, Neutral, and Reverse ranges provides smooth, stepless power delivery across the K9's full 31 mph speed range, eliminating manual shifting and making the K9 easy to operate during tasks requiring constant speed changes.

Front and Rear Hydraulic Disc Brakes

Hydraulic disc brakes front and rear provide reliable, fade-resistant stopping power at all operating speeds and payload levels, ensuring safe controlled deceleration on grades, rough terrain, and when towing the K9's maximum rated loads.

Independent Double A-Arm Suspension

Front and rear independent double A-arm (wishbone-type) suspension absorbs terrain impacts and maintains tire contact with the ground for stable, controlled handling across uneven fields, trails, and worksites under all load configurations.

12-Inch Ground Clearance

Generous ground clearance of up to 12.5 inches provides the obstacle clearance needed for confident operation across rough agricultural terrain, drainage features, and field access tracks with full payload without risk of frame grounding.

Hydraulic Power Steering

Hydraulic power steering provides effortless directional control at all operating speeds, reducing operator fatigue during intensive daily work involving frequent turns, tight maneuvering in confined spaces, and low-speed precision positioning tasks.

Complete Machine Data.

Performance

Engine Power	24 HP (18.30 kW)
Max Travel Speed	31 mph (50 km/h)
Payload Capacity	1,750 lb (794 kg)
Towing Capacity	1,300 lb (590 kg)
Cargo Capacity	1,102 lb (500 kg)
Ground Clearance	12.50 in (318 mm)

Engine & Drivetrain

Engine Make	KIOTI
Engine Model	3C100LFU-U3
Engine Displacement	61.50 cu.in. (1,007 cc)
Fuel Type	Diesel
Drive Train	Belt CVT
Steering	Electronic Power Steering

Dimensions

Overall Length	119.80 in (3,045 mm)
Width	65.60 in (1,640 mm)
Height	78.40 in (1,990 mm)
Wheelbase	85.80 in (2,180 mm)
Turning Radius	15.10 ft (4.60 m)
Cargo Bed	43.70 × 58.20 × 11.50 in (L×W×D)
