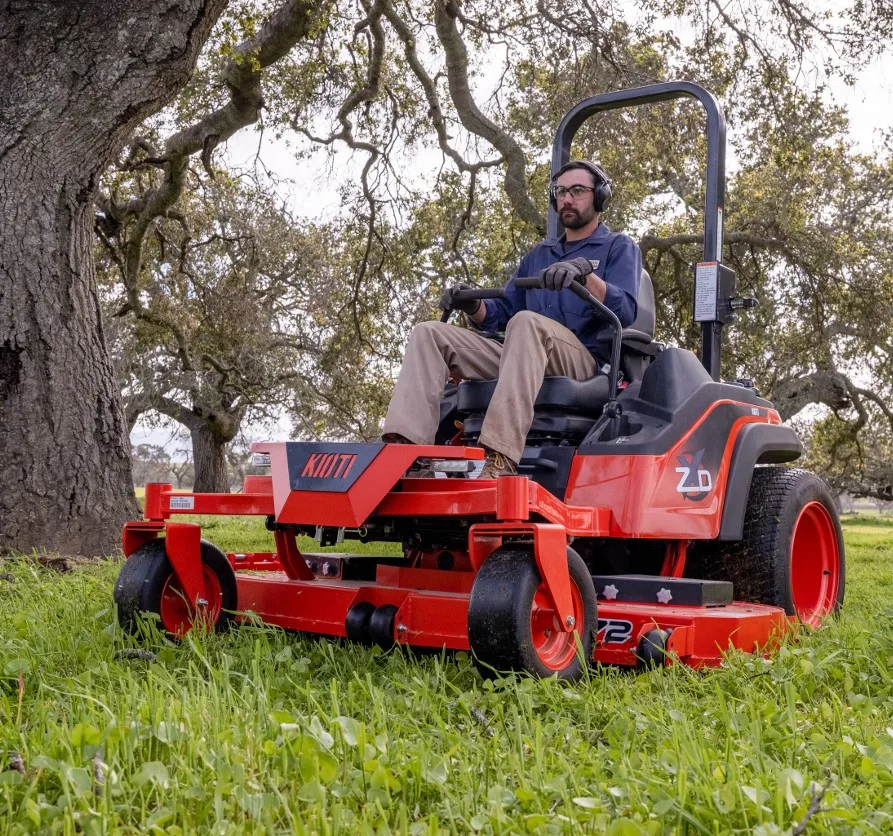

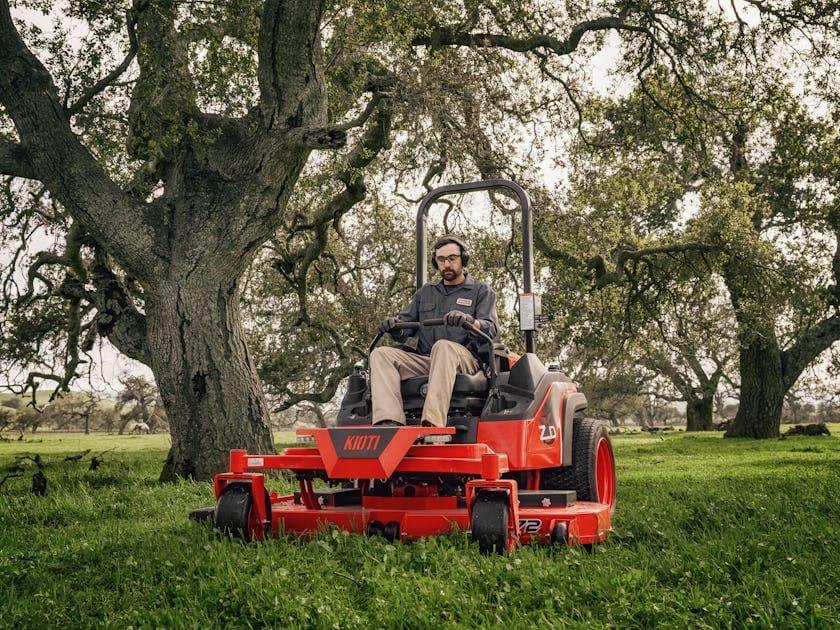

KIOTI ZXD72 Diesel Zero Turn Mower

24.5HP KIOTI Diesel 72-Inch Zero Turn Mower

“Diesel endurance. Zero compromise.”

The KIOTI ZXD72 delivers 24.5 HP from a belt-free KIOTI 1.2L diesel 3-cylinder engine through dual hydrostatic transmission, with a 72-inch 7-gauge fabricated steel deck, 11 mph travel speed, and a 17.20-gallon diesel tank for maximum commercial mowing endurance.

Engine Power

24.5 HP

Cutting Width

72 in

Max Travel Speed

11 mph

Machine Weight

1980 lb

Fuel Capacity

17.20 gal

Engine Displacement

72.20 cu.in.

Product Capabilities

Diesel Efficiency for the Largest Properties

Features of KIOTI ZXD72 Diesel Zero Turn Mower

KIOTI 1.2L Diesel Engine — Belt-Free

KIOTI's vertically integrated 1.2L 3-cylinder diesel engine uses direct drive transaxles — no belts in the drivetrain — dramatically reducing maintenance requirements and providing the torque and fuel efficiency advantages of diesel over gasoline-powered alternatives.

Large 17-Gallon Diesel Fuel Tank

An industry-leading 17-gallon diesel fuel tank provides exceptional operational range per fill, allowing the ZXD to work through the longest commercial mowing days and the largest properties without interruption for refueling.

2HST Dual Hydrostatic Transmission

The 2HST dual hydrostatic transmission system provides independent, smooth wheel speed control for responsive zero-turn maneuverability, with the reliability and efficiency benefits of hydrostatic drive for heavy commercial daily-cycle use.

11 MPH Maximum Ground Speed

At up to 11 mph, the ZXD is among the fastest diesel zero-turn mowers available — maximizing area productivity per operator-hour on large commercial estates, sports facilities, campuses, and municipal turfed areas.

7-Gauge Commercial Steel Deck

A 7-gauge fabricated steel cutting deck — thicker than most competitive commercial zero-turns — provides exceptional impact resistance and extended service life suited to the intensive daily workloads and occasional debris encounters of commercial mowing operations.

61 to 72-Inch Deck Width Options

Available in 61- and 72-inch deck widths, the ZXD covers up to 6 feet of turf in a single pass — significantly reducing the number of passes required on large commercial properties and dramatically cutting the operator-hours needed to complete each mowing cycle.

Complete Machine Data.

Performance

Engine Power	24.50 HP (18.30 kW)
Cutting Width	72 in
Max Travel Speed	11 mph (17.70 km/h)
Machine Weight	1980 lb (898 kg)
Fuel Capacity	17.20 gal (65 L)
Drive Train Model	2HST Dual Hydrostatic

Engine

Engine Make	KIOTI
Engine Model	KIOTI 1.2L 3-Cylinder
Engine Displacement	72.20 cu.in. (1,233 cc)
Fuel Type	Diesel
Belt-Free Drivetrain	Direct Drive Transaxles

Deck & Dimensions

Deck Type	Fabricated Steel
Deck Steel Thickness	7 Gauge
Cutting Height Range	1 - 5 (25 - 127) in
Anti-Scalp Rollers (Front/Rear)	4 / 2
Length	91.70 (2,328) in
Width	59.60 (1,515) in
Height	82.40 (2,092) in
Wheelbase	59.40 (1,510) in
