KIOTI SL750 Skid Steer Loader — Canopy

73.6HP KIOTI Diesel Skid Steer Loader — Canopy

“Lift. Push. Move. Repeat.”

The KIOTI SL750 Canopy delivers 73.6 HP from a KIOTI 4HTI4 diesel engine with 2,690 lb rated operating capacity, 5,380 lb tipping load, 126.6-inch hinge pin height, 21.9 gpm hydraulic flow, 12.05 mph travel speed, and 8,197 lb operating weight.

Engine Power

73.6 HP

Operating Capacity

2,690 lb

Tipping Load

5,380 lb

Max Travel Speed

12.05 mph

Hinge Pin Height

126.6 in

Operating Weight

8,197 lb

Product Capabilities

Built for the Hardest Jobs on the Lot

Features of KIOTI SL750 Skid Steer Loader — Canopy

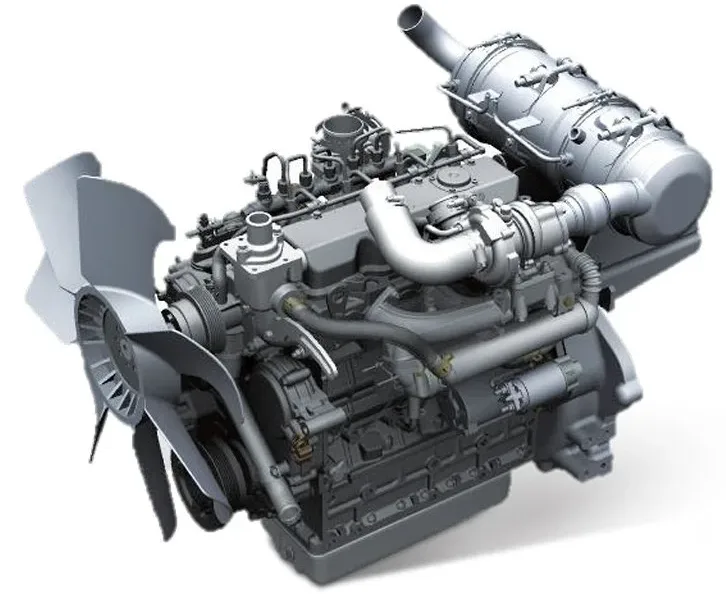

KIOTI 4HTI4 Diesel Engine

KIOTI's own 4HTI4 diesel engine delivers 73.6 HP at 2,400 RPM with strong low-end torque for confident loader operations, with fully supported in-house engineering ensuring parts availability and service responsiveness throughout the machine's working life.

2,690 lb Rated Operating Capacity

The SL750's 2,690 lb rated operating capacity at 50% tipping load provides a wide safety margin for daily material handling work, enabling confident bucket-full operation across construction aggregate, topsoil, and mixed-material loading tasks.

High-Flow Hydraulic System

Available with KIOTI's Flow+ high-flow hydraulic upgrade delivering 34 gpm, the SL750 supports the full range of demanding auxiliary attachments including hydraulic breakers, planers, augers, and high-flow rotary cutters for maximum jobsite versatility.

126.6-Inch Hinge Pin Height

A maximum hinge pin height of 126.6 inches provides the reach needed for efficient loading into standard truck beds and hoppers, minimizing the lift cycles required and maximizing daily material throughput during loading and unloading operations.

12.05 MPH Maximum Travel Speed

Maximum travel speed of 12.05 mph enables fast, efficient repositioning between work areas across the jobsite — reducing non-productive transit time and improving overall daily productivity compared to slower-travel competitor machines.

Fully Pressurized Sealed Cab Option

The available sealed, pressurized cab creates a dust-free operator environment with climate control for year-round comfortable operation in the harshest construction and agricultural environments, significantly reducing operator fatigue on long workdays.

Complete Machine Data.

Performance

Engine Power	73.60 HP (54.90 kW) @ 2,400 rpm
Rated Operating Capacity (50% Tip)	2,690 lb (1,220 kg)
Tipping Load	5,380 lb (2,440 kg)
Max Travel Speed	12.05 mph (19.40 km/h)
Hydraulic Flow	21.90 gpm (82.90 L/min)
Max ROC w/ Counterweight	2,833 lb (1,285 kg)

Engine

Engine Make	KIOTI
Engine Model	4HTI4
Engine Displacement	148.60 cu.in. (2,435 cc)
Fuel Type	Diesel
Fuel Capacity	26.40 gal (100 L)
Hydraulic Pressure (Standard)	3,335 psi (230 bar)

Dimensions & Weight

Operating Weight (w/o operator)	8,197 lb (3,718 kg)
Operating Weight (with operator)	8,362 lb (3,793 kg)
Length with Bucket	144.70 in (3,675 mm)
Height with Cab	81.20 in (2,063 mm)
Ground Clearance	7.70 in (195 mm)
Wheelbase	47.20 in (1,200 mm)
